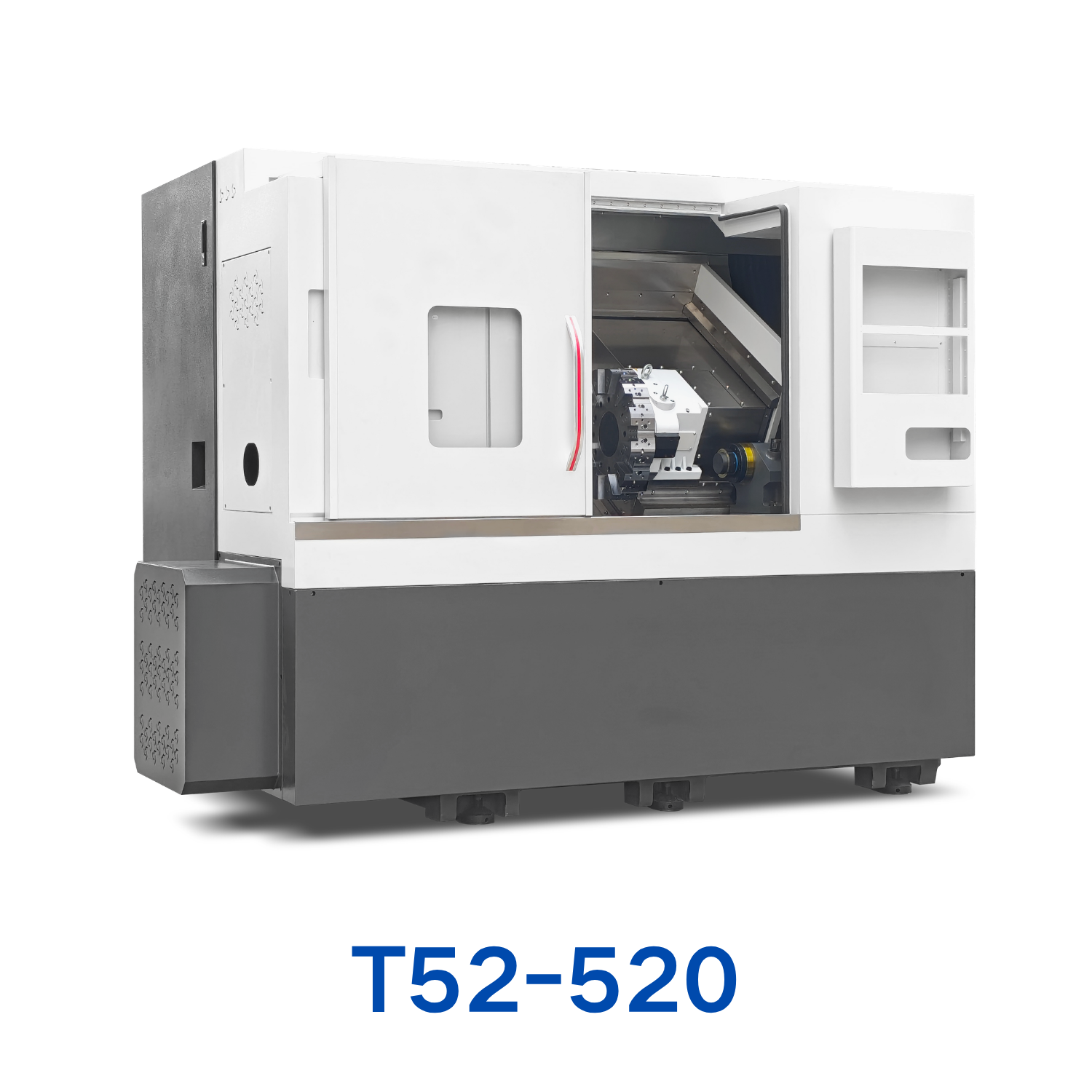

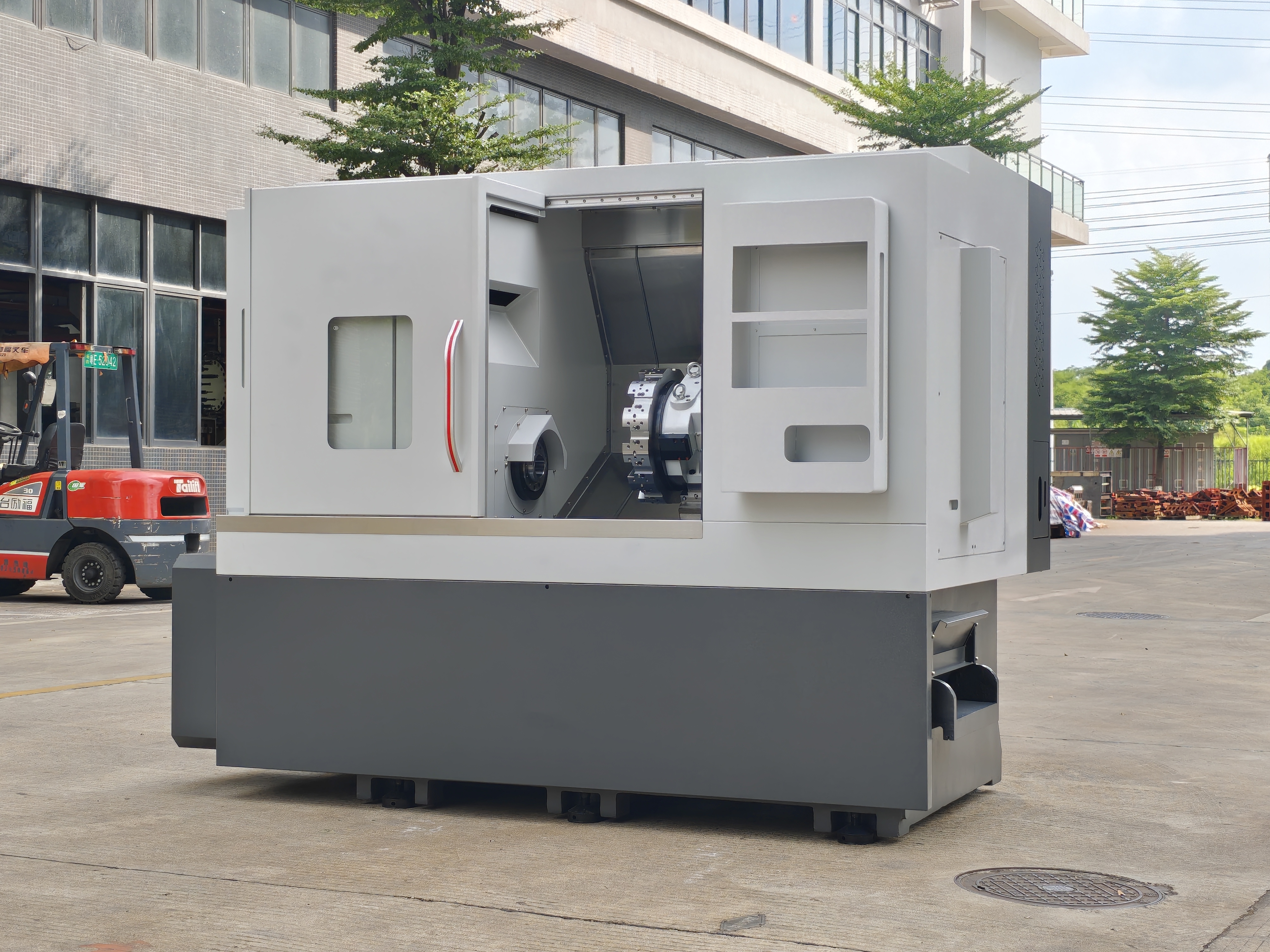

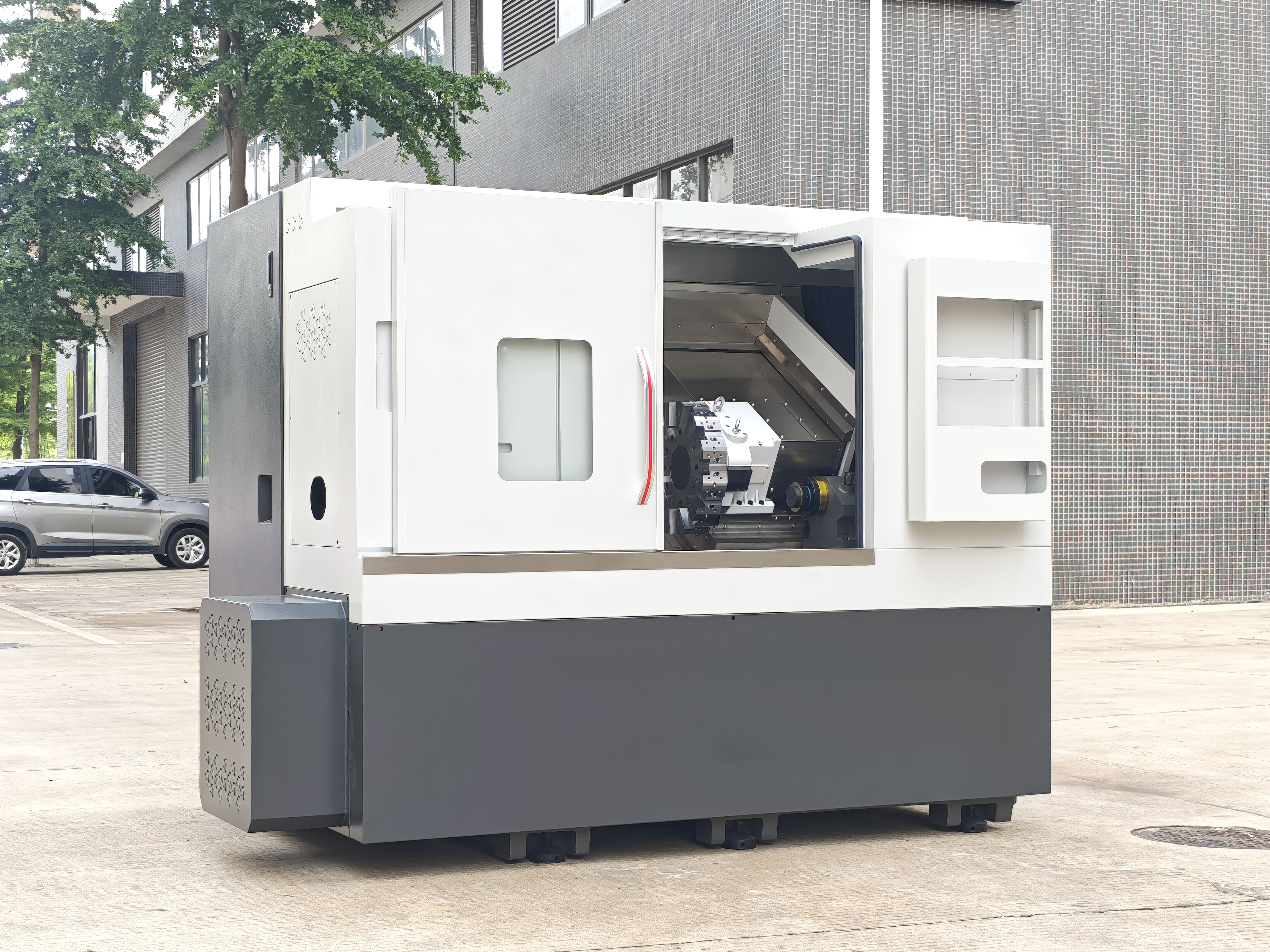

Name: Single Spindle with Tailstock and Servo Turret
Brand: sanjiecnc.com
SKU: T52-520
Rating: 5 (1 reviews)

Description

Manufacturing Introduction :

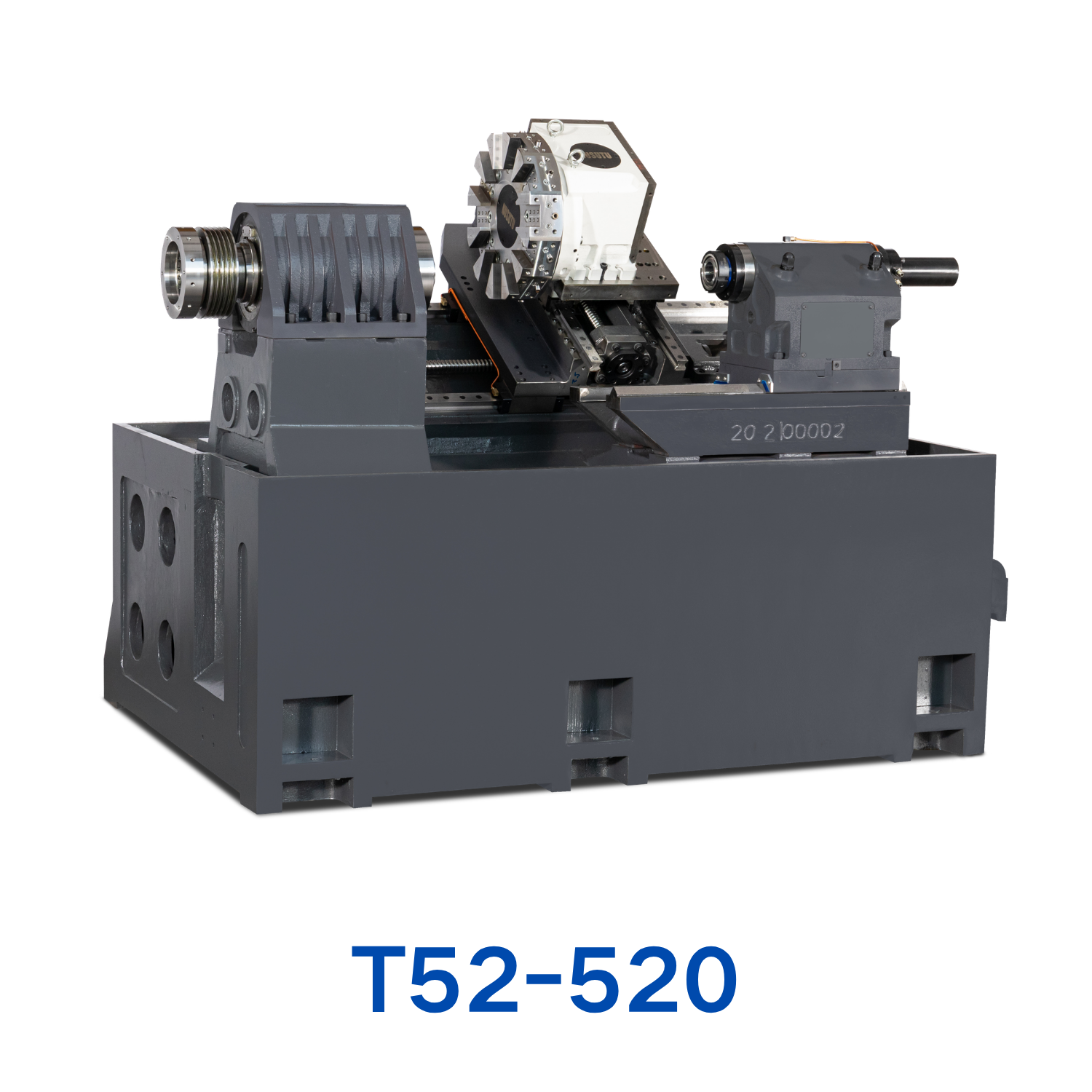

1.Secondary Annealing:
All castings undergo secondary annealing with precisely controlled heating, soaking, and cooling processes to eliminate internal stress, ensuring long-term accuracy, vibration resistance, and thermal stability.

2.Natural Aging:
All castings are naturally aged for several months to adapt to environmental variations and fully release residual stresses, ensuring long-term stability.

3.Machining Facility：
The workshop is equipped with over ten mother machinesfrom Japanese and Taiwanese brands. Precision machining of castings is carried out on OKUMA

4.Accuracy Assurance：
All machined castings are inspected using ZEISS coordinate measuring machines (CMM). Only qualified components proceed to assembly.

Specification :

· ITEMS		· T52-520
· Capacity	· Swinging Over Cross Bed	560mm
	· Max.Distance from Chuck to Turret	545mm
	· Min.Distance from Chuck to Turret	-5mm
	· Max.Distance from Chuck to Tailstock Center	560mm
	· Max.Distance from Turret Center to Spindle Center	445mm
	· Max. Turning Diameter	580mm
	· Table Center Height	130mm
	· Swinging Over Cross Carriage	330mm
	· Swing Diameter of Tailstock	330mm
Feeding Travel	· X-Axis Travel Length	260mm
	Z-Axis Travel Length	550mm
· Spindle	· Spindle Noise	A2-6
	· Spindle Through Hole	⌀66mm
	Spindle Speed (RPM)	0-4500r/min
	· Spindle Center Height (Above Datum)	1025mm
· Tailstock	· Tailstock Center Model	Morse taper No. 5
	· Tailstock Travel	Hydraulic-driven linear rail 380mm	horizontal sliding hard rail 450mm
	· Center Travel	/	120mm (Hydraulic-driven)
	· Quill Diameter	95mm
· Feeding Speed	· X-Axis Rapid Traverse Speed	≤ 30m/min
	Z-Axis Rapid Traverse Speed	≤ 30m/min
· Wide-Body Servo Turret	· Positions	12
	Tool Shank Size	25x25mm
	· Boring Bar Diameter	⌀32-40mm
	· Turret Center Height	100mm
	· Turret Hexagon Size (Across Flats)	400mm
	· Boring Holder	Hole Diameter 32mm
		Hole Diameter 40mm
	· OD Turning Holder
