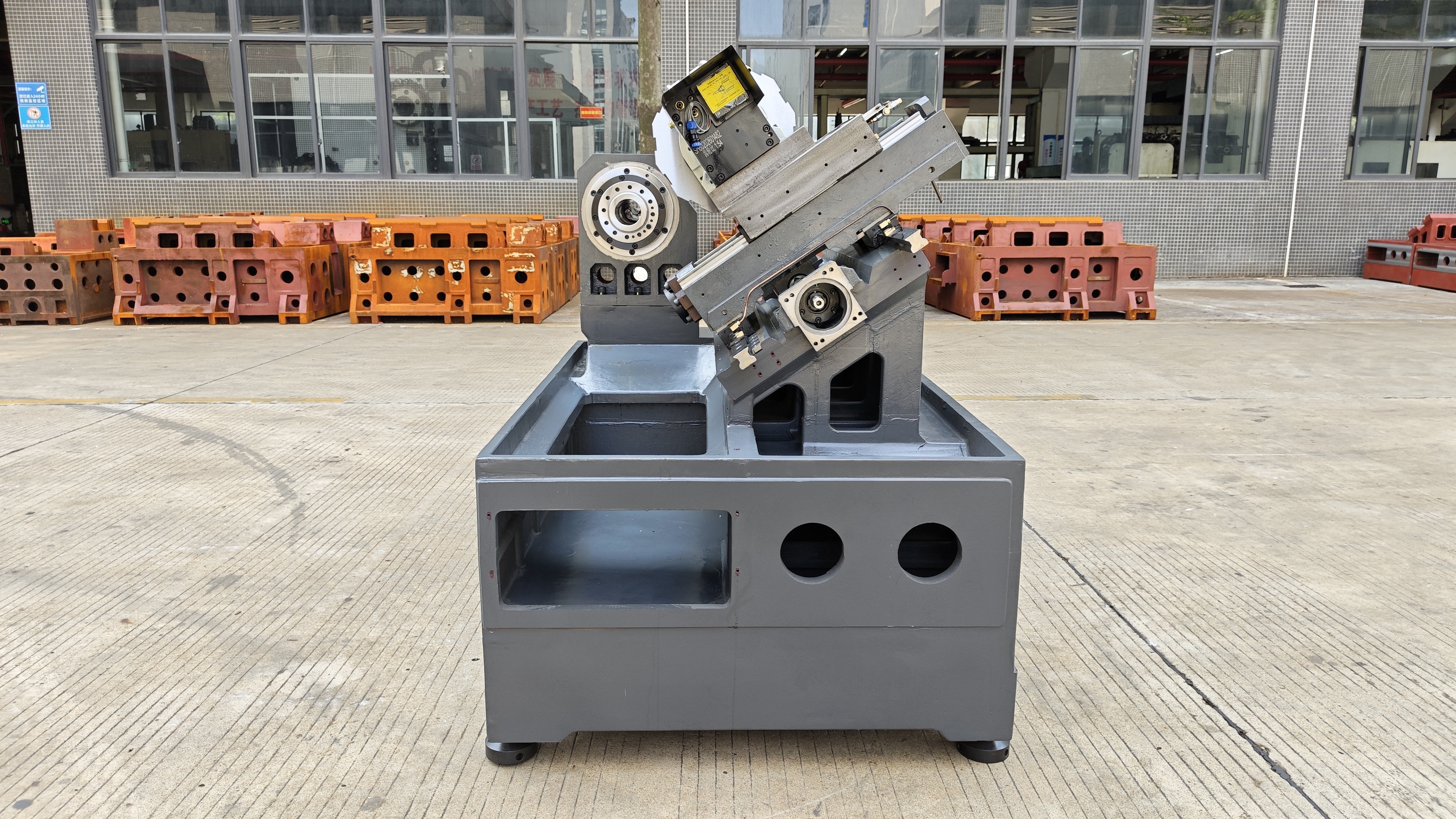

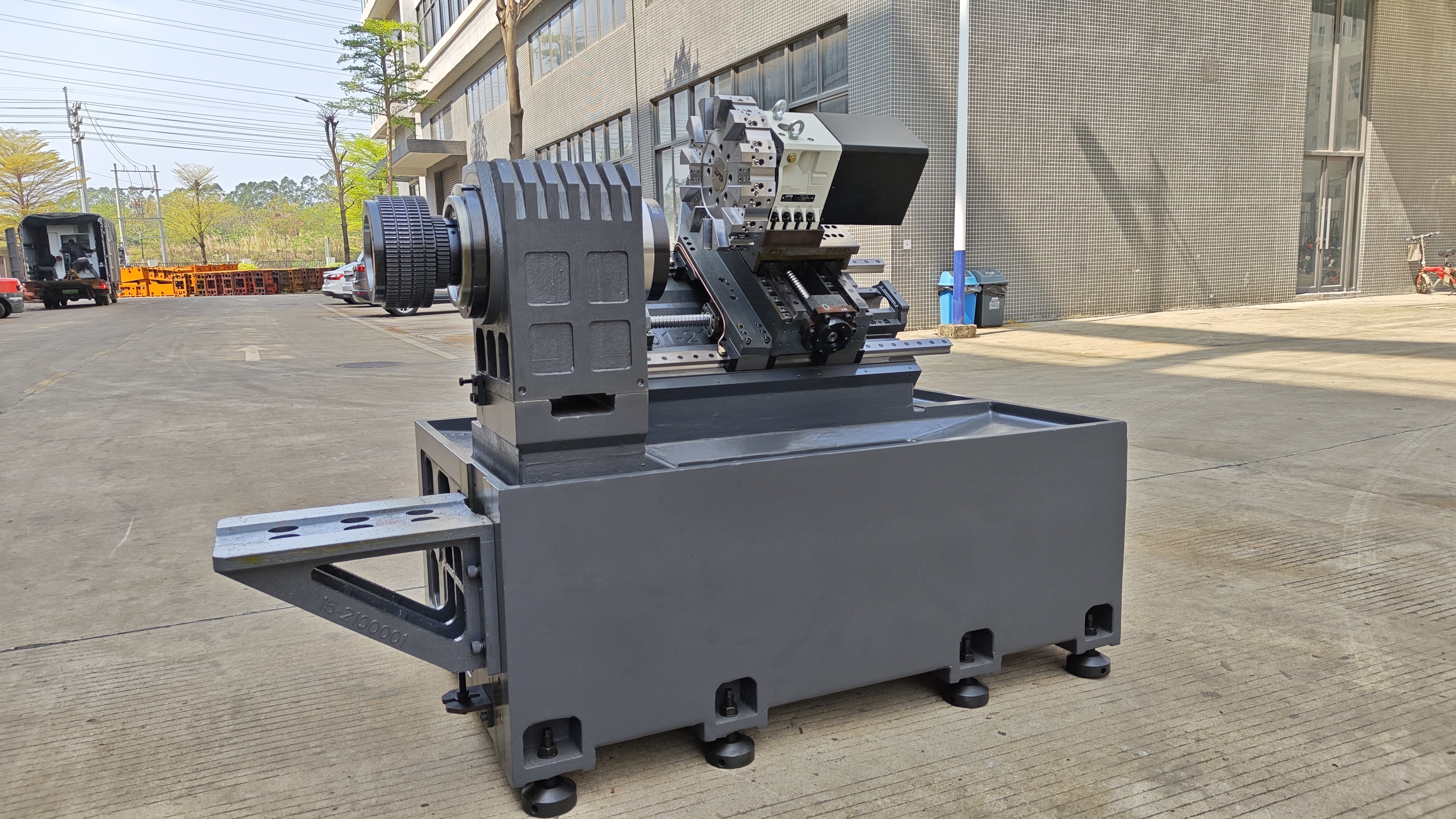

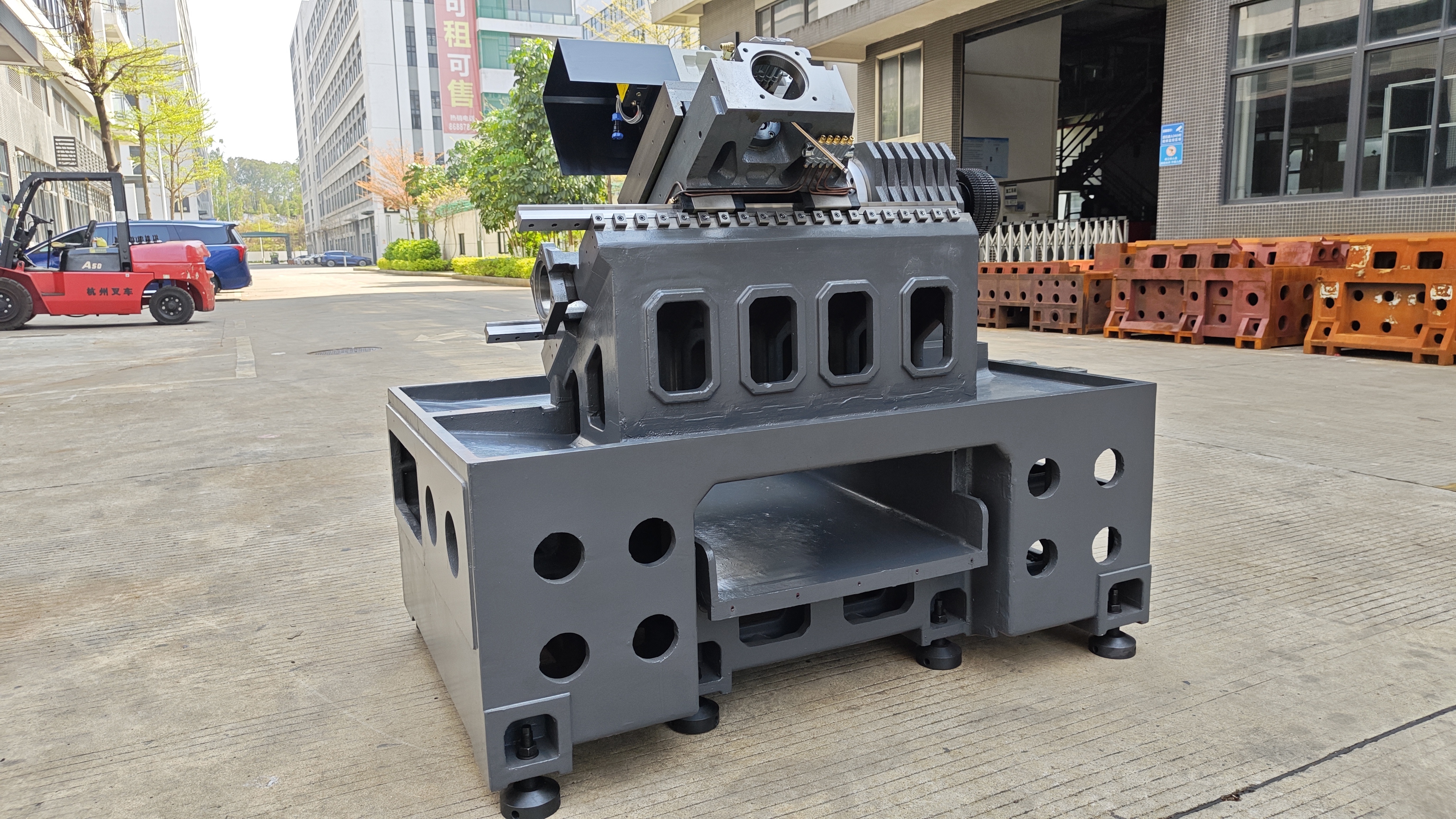

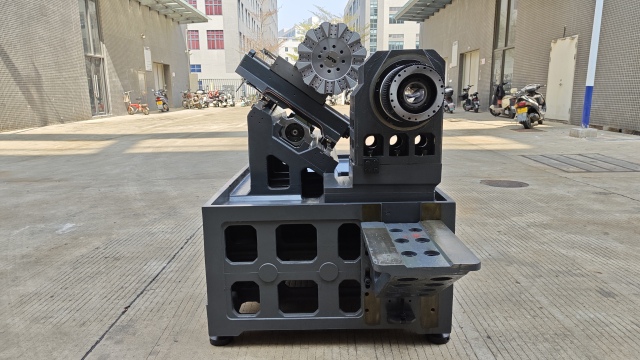

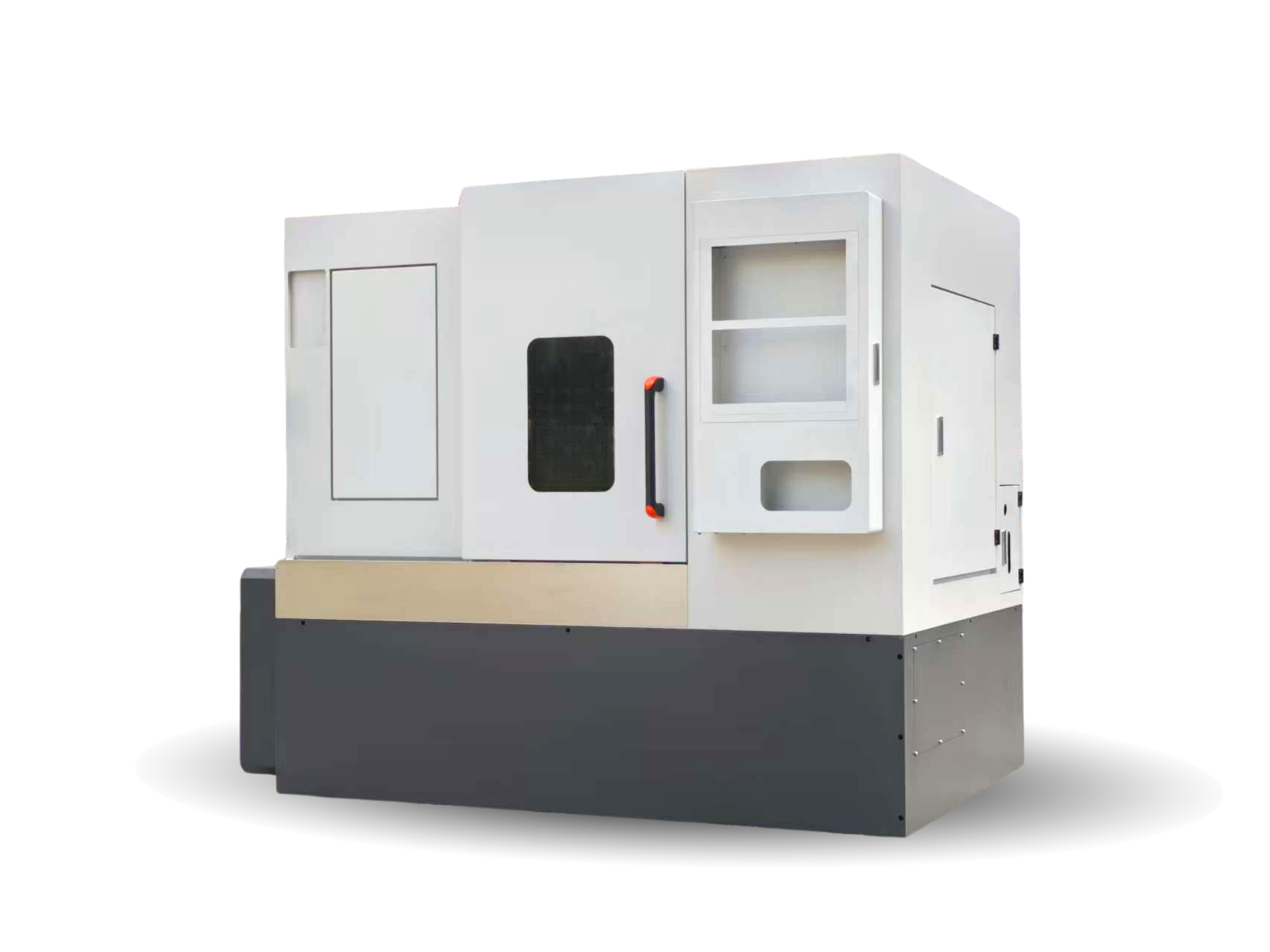

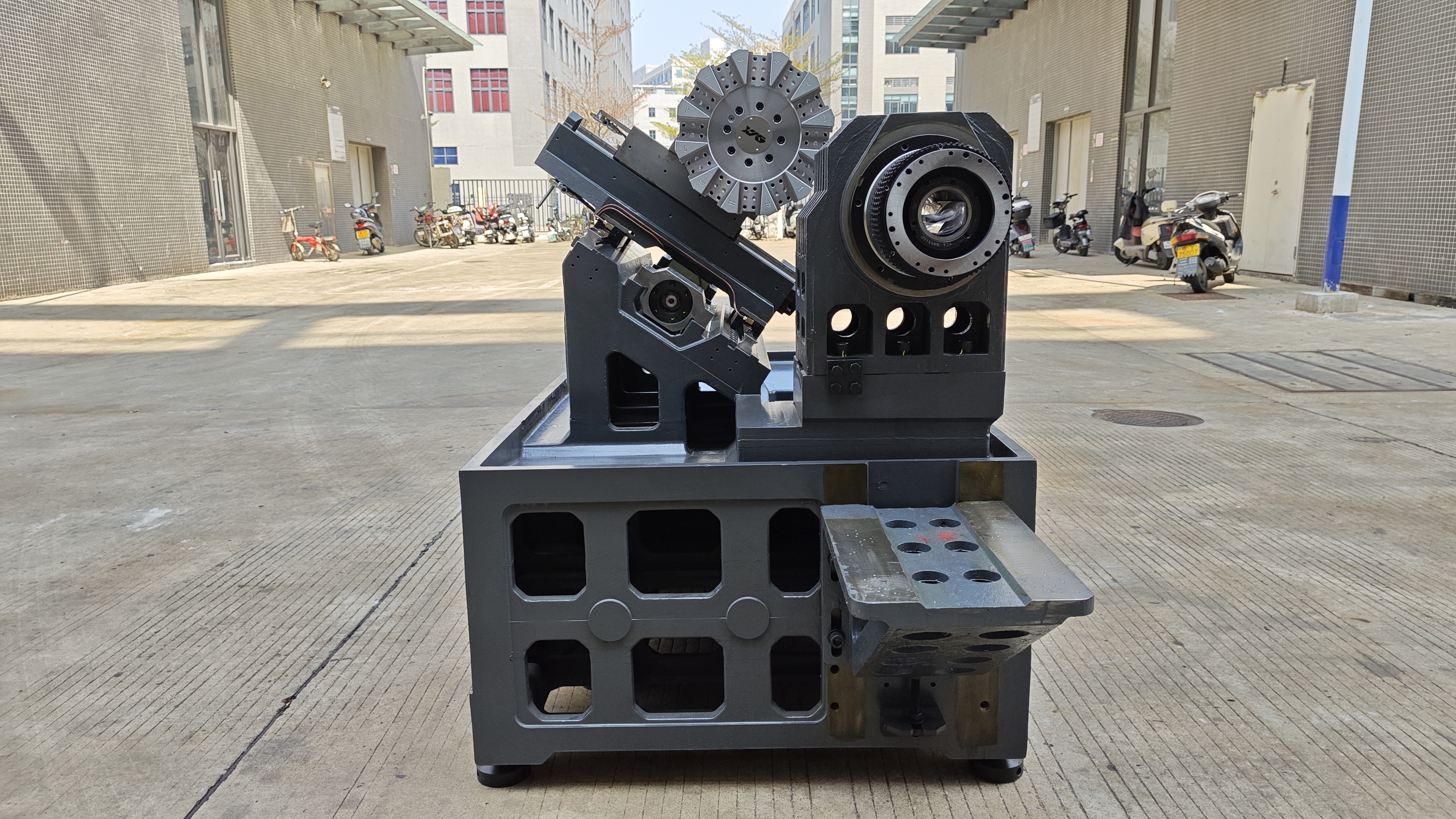

Name: Single Spindle with Servo Turret
Brand: sanjiecnc.com
SKU: T46 T52
Rating: 5 (1 reviews)

Description

Manufacturing Introduction :

1.Secondary Annealing:
All castings undergo secondary annealing with precisely controlled heating, soaking, and cooling processes to eliminate internal stress, ensuring long-term accuracy, vibration resistance, and thermal stability.

2.Natural Aging:
All castings are naturally aged for several months to adapt to environmental variations and fully release residual stresses, ensuring long-term stability.

3.Machining Facility：
The workshop is equipped with over ten mother machinesfrom Japanese and Taiwanese brands. Precision machining of castings is carried out on OKUMA

4.Accuracy Assurance：
All machined castings are inspected using ZEISS coordinate measuring machines (CMM). Only qualified components proceed to assembly.

Specification :

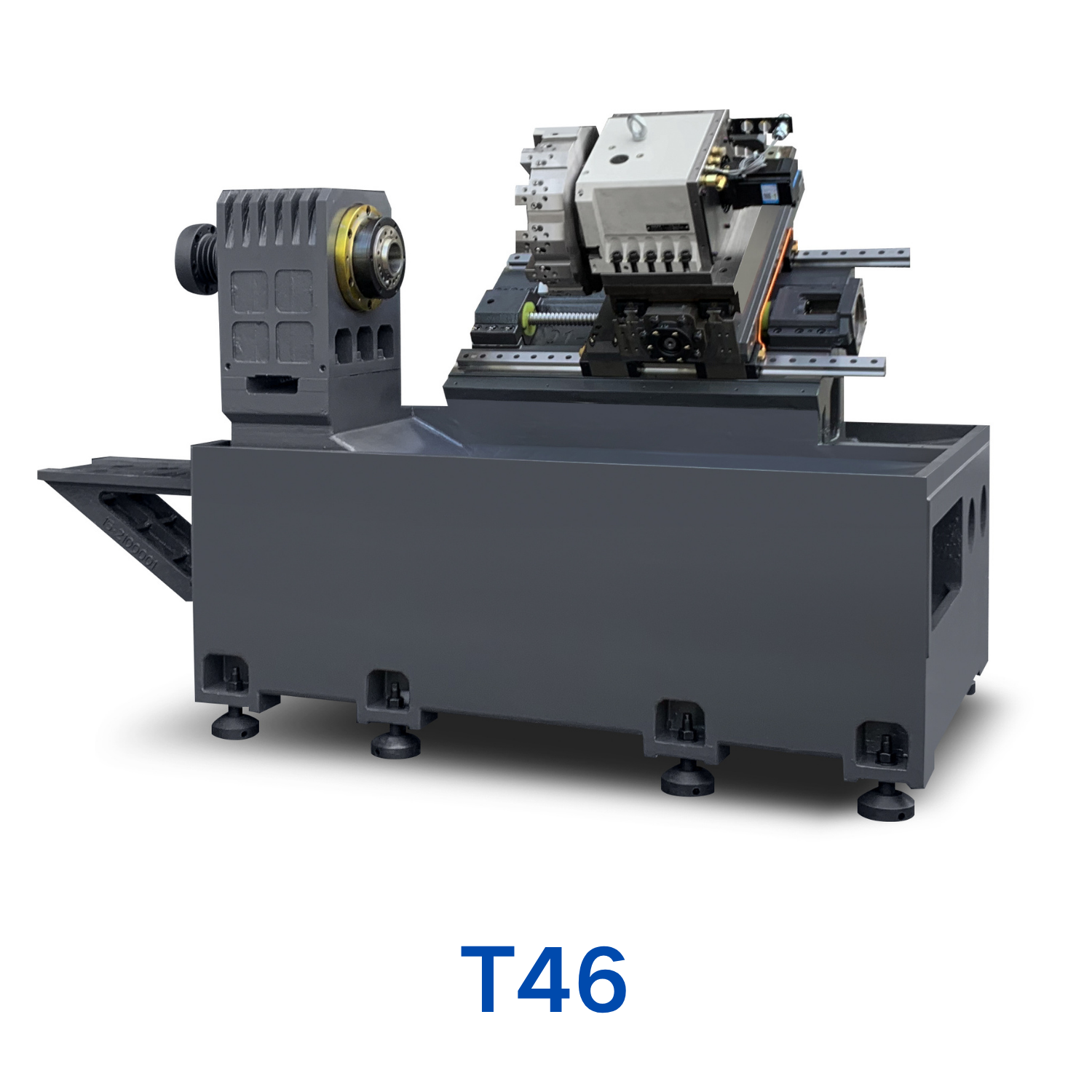

ITEMS		T46	T52
Capacity	Swinging Over Cross Bed	470mm
	Swinging Over Cross Carriage	280mm	245mm
	Max.Distance from Chuck to Turret	370mm	360mm
	Min.Distance from Chuck to Turret	-30mm	-40mm
	Max.Distance from Turret Center to Spindle Center	400mm
	Max. Turning Diameter	545mm	495mm
	Table Center Height	130mm
Feeding Travel	X-Axis Travel Length	260mm
	Z-Axis Travel Length	400mm
Spindle	Spindle Noise	A2-5	A2-6
	Spindle Through Hole	⌀56mm	⌀66mm
	Spindle Speed (RPM)	0-6000r/min	0-4500r/min
	Spindle Center Height (Above Datum)	1015mm
Feeding Speed	X-Axis Rapid Traverse Speed	≤ 24m/min
	Z-Axis Rapid Traverse Speed	≤ 24m/min
Servo Turret	Positions	12
	Tool Shank Size	25x25mm
	Boring Bar Diameter	⌀32-40mm
	Turret Center Height	80/100mm
	Turret Hexagon Size (Across Flats)	380/420mm
	Boring Holder	Hole Diameter 32mm
		Hole Diameter 40mm
	OD Turning Holder
