ITEMS |

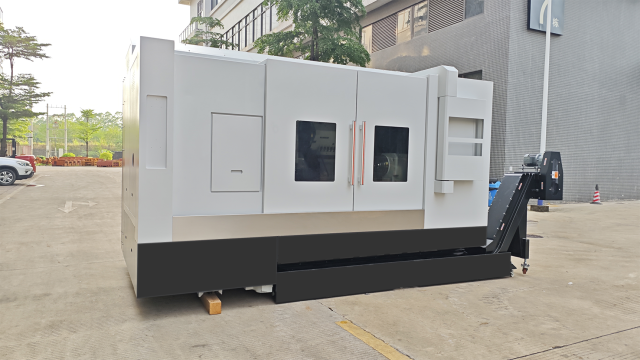

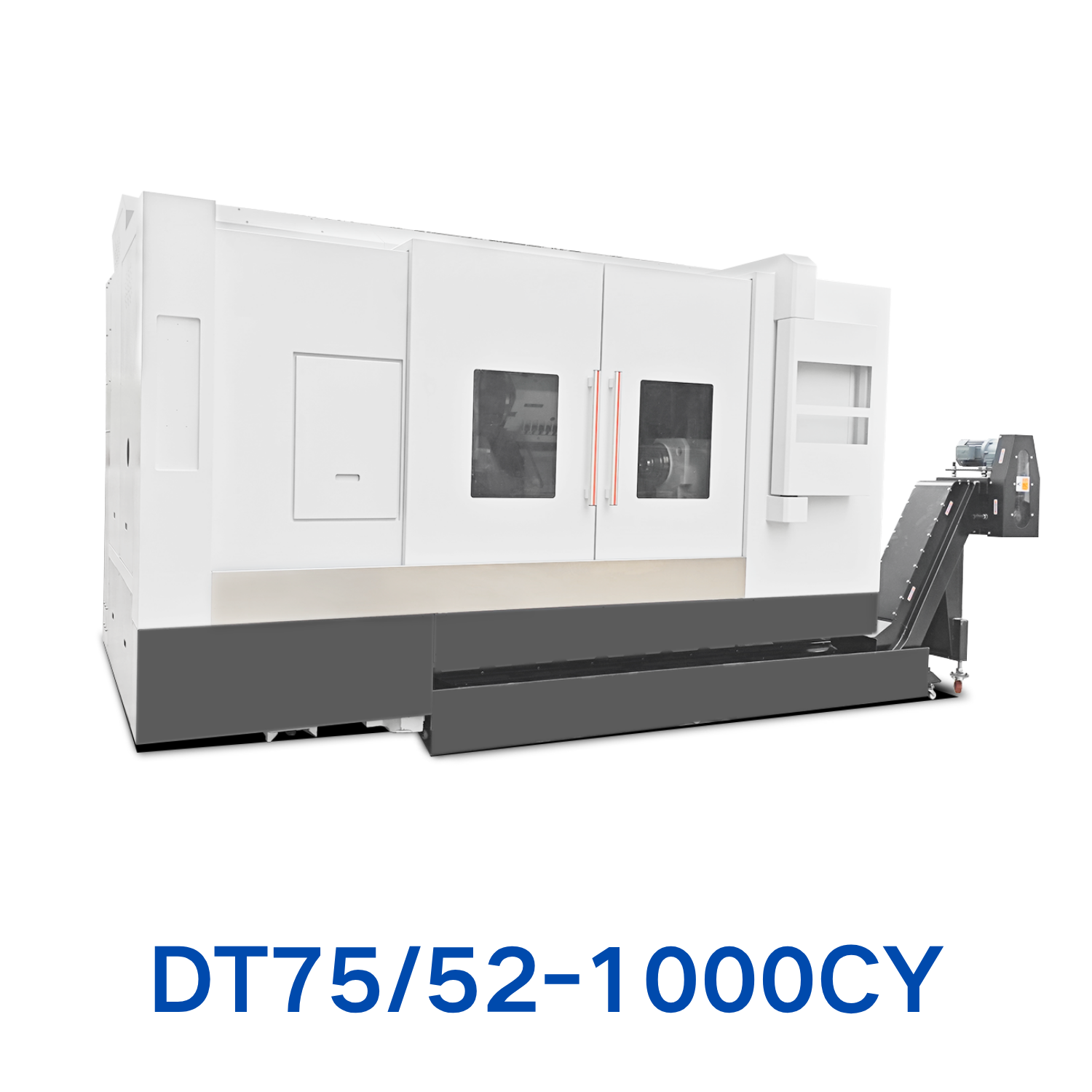

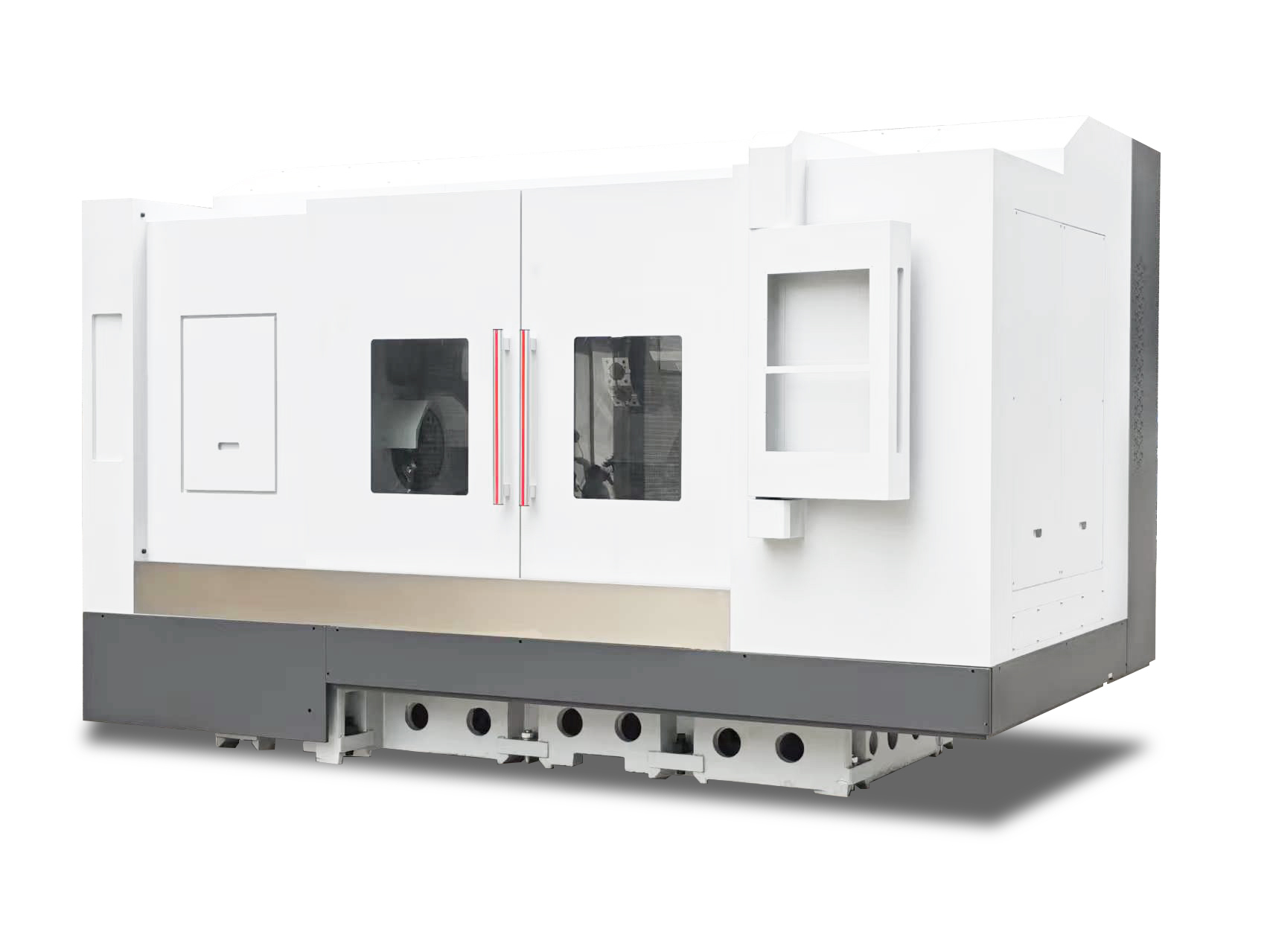

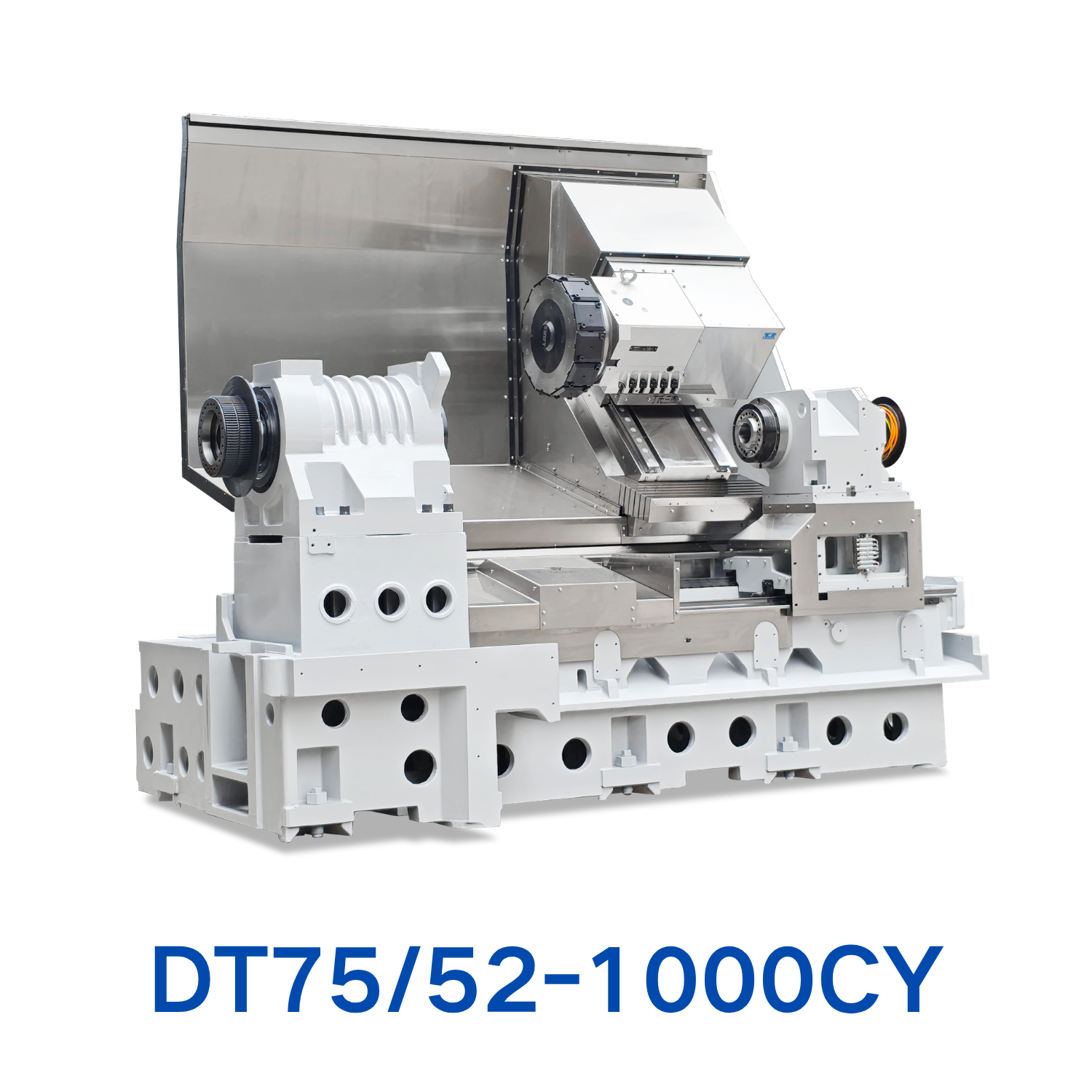

DT75/52-1000CY |
||
|
· Capacity |
Swinging Over Cross Bed |
720mm |
|
|
Max.Distance from Chuck to Turret |
1015mm |
||
|
Min.Distance from Chuck to Turret |
-105mm |
||
|
Max.Distance Between Two Spindle Chuck |
1120mm |
||
|
Max.Distance from Turret Center to Spindle Center |
490mm |
||
|
Max. Turning Diameter |
740mm |
||
|
Max.Swing Diameter of Sub-Spindle |
430mm |
||
|
Swinging Over Cross Carriage |
430mm |
||
|
Table Center Height |
125mm |
||
|
Feeding Travel |
X-Axis Travel Length |
370mm(-130mm /＋240mm) |
|
|
Y-Axis Travel Length |
150mm(﹣75mm to﹢75mm） |
||
|
Z-Axis Travel Length |
1120mm |
||
|
Spindle |
Spindle Noise |
A2-8 |
|
|
Spindle Through Hole |
⌀86mm |
||
|
Spindle Speed (RPM) |
0-3000r/min |
||
|
· Sub-Spindle |
Spindle Noise |
A2-6 |
|
|
Spindle Through Hole |
⌀66mm |
||
|
· Spindle Speed (RPM) |
0-4500r/min |
||
|
Feeding Speed |
X-Axis Rapid Traverse Speed |
≤ 24m/min |
|
|
Y-Axis Rapid Traverse Speed |
≤ 10m/min |
||
|
Z-Axis Rapid Traverse Speed |
≤ 24m/min |
||
|
ZB-Axis Rapid Traverse Speed |
≤10m/min |
||
|
Live Turret |
Positions |
BMT65-12 |
BMT55-16 |
|
Tool Shank Size |
25x25mm |
25x25mm |
|
|
Boring Bar Diameter |
⌀40mm |
⌀32-40mm |
|
|
Turret Center Height |
125mm |
125mm |
|
|
Turret Hexagon Size (Across Flats) |
380mm |
450mm |
|
|
From Axial Live Tool Holder to Spindle Center (Tool Extension with 72mm Length） |
0mm |
35mm |
|
|
Max. Back Tool Length |
125mm |
125mm |
|
|
· Boring Holder |
Hole Diameter 32mm |
||
|
Hole Diameter 40mm |
|||
|
OD Turning Holder |
|
||
|
Facing Tool Holder |
|
||
|
Axial Live Tool Holder |
|
||
|
Radial Live Tool Holder |
|
||
