ITEMS |

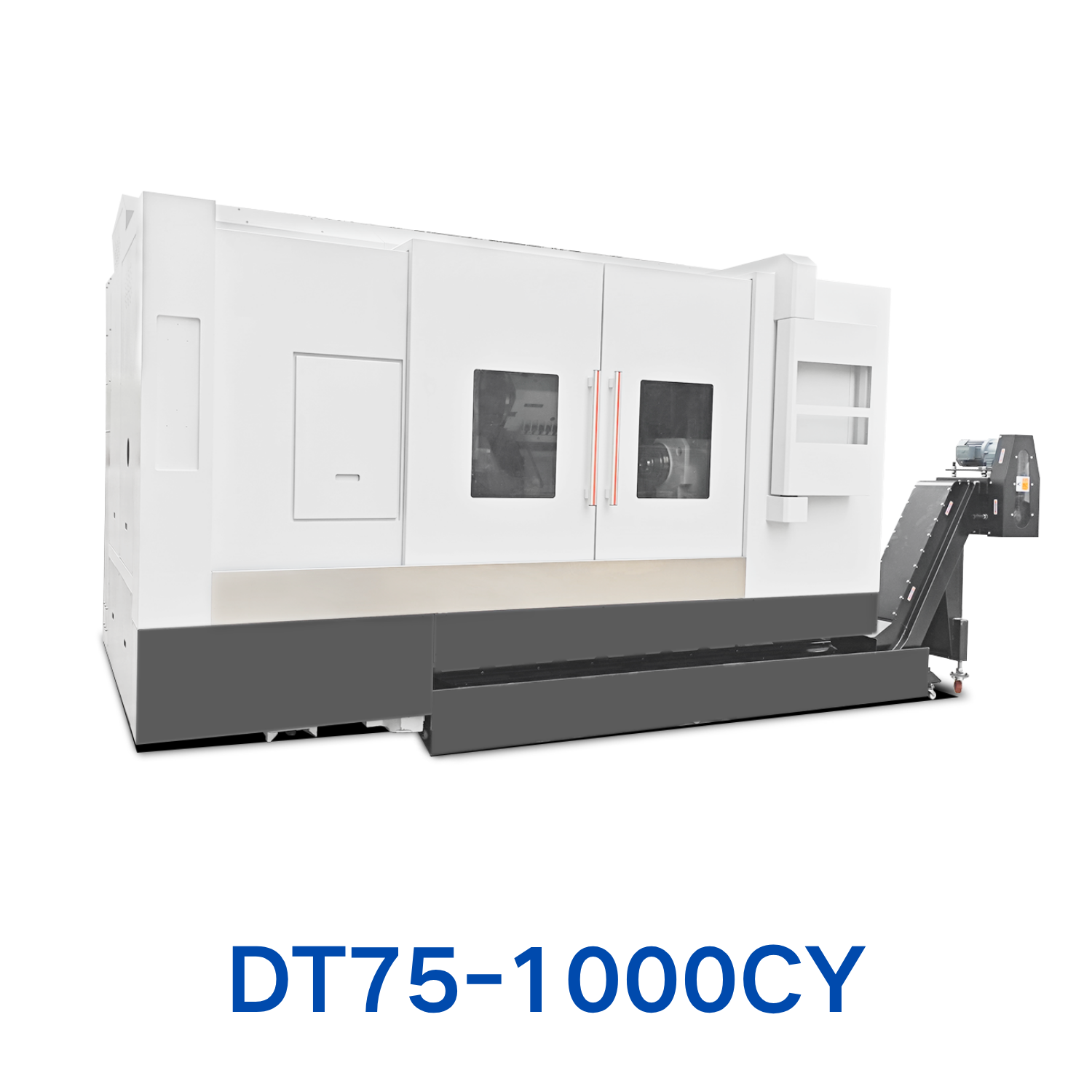

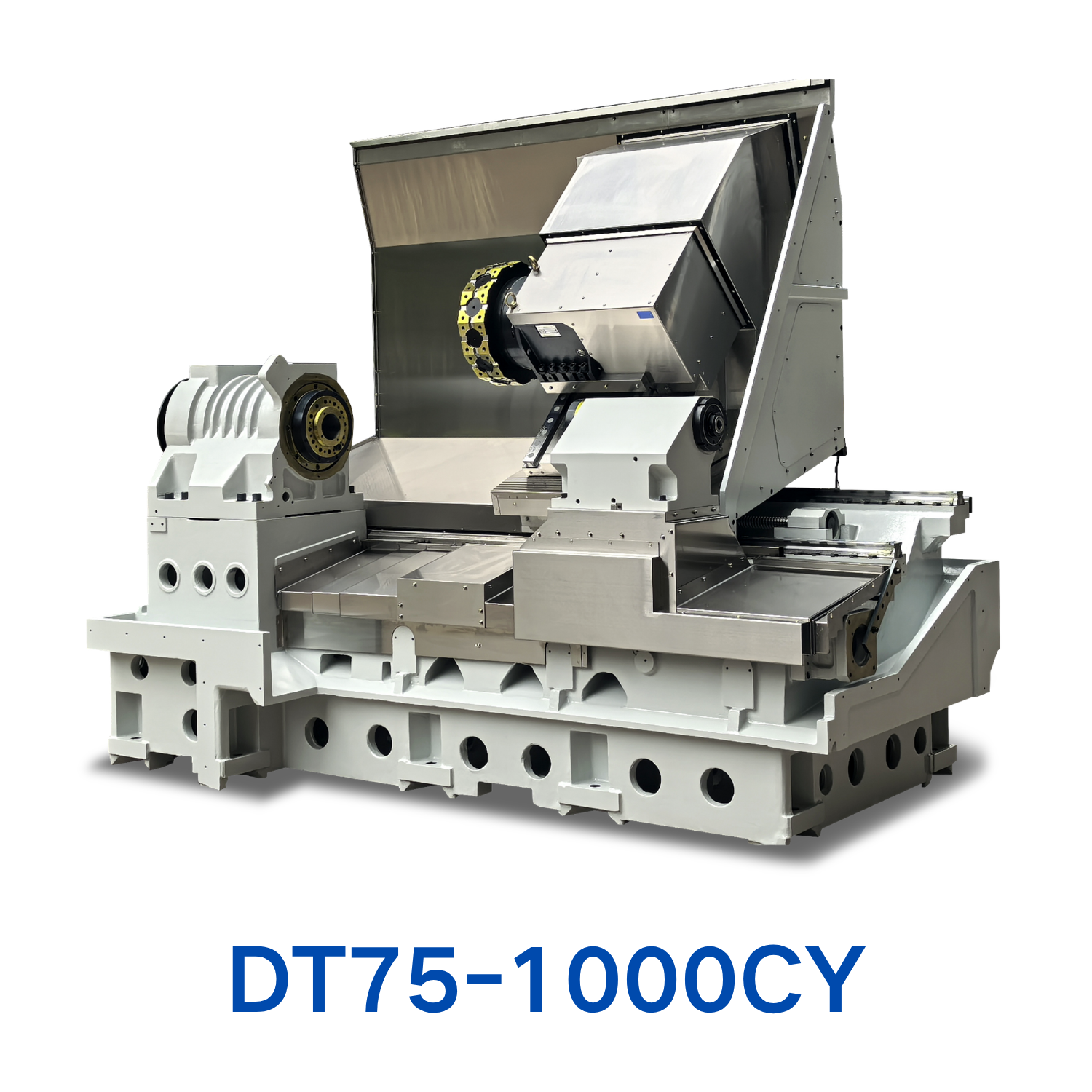

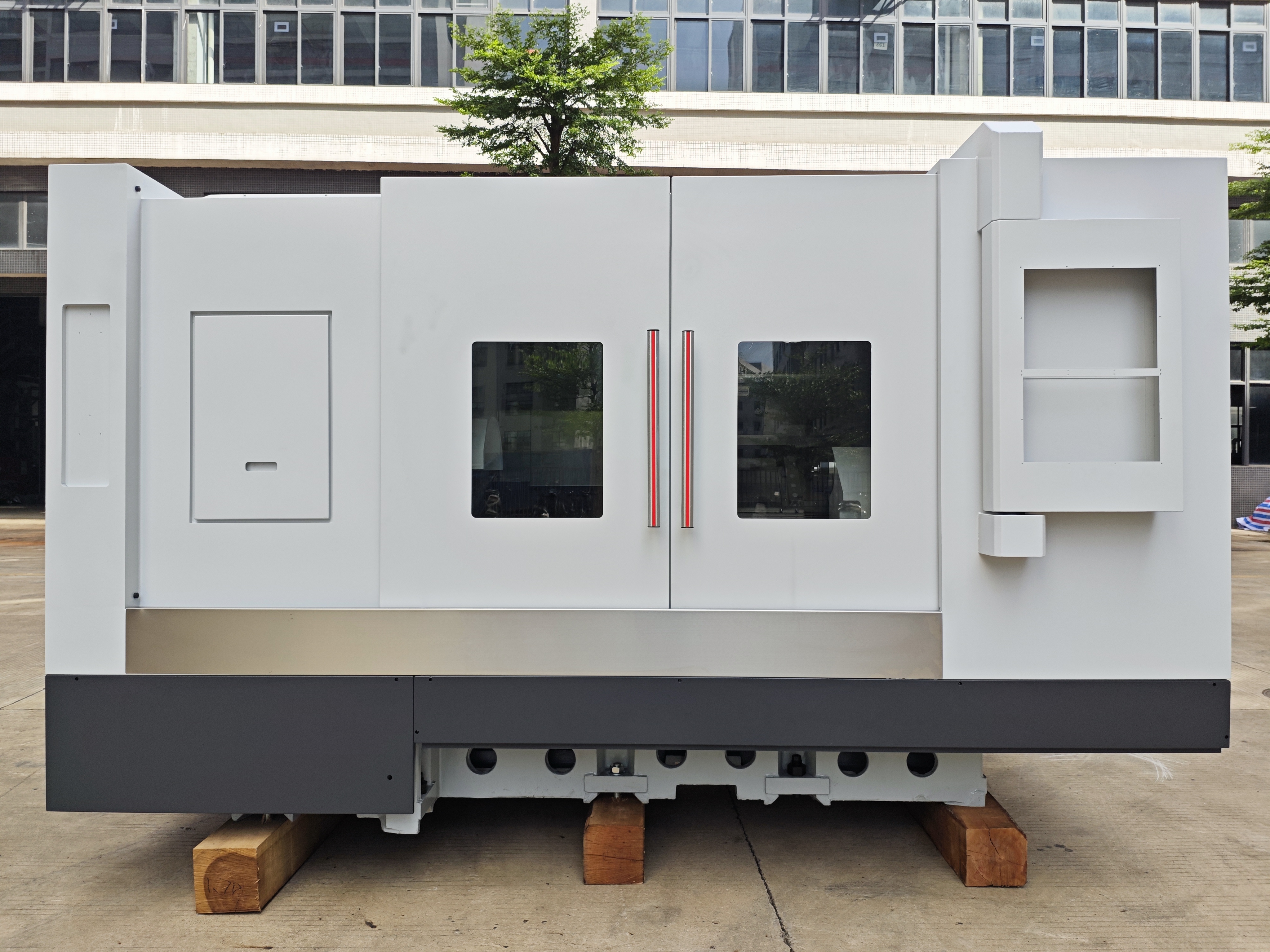

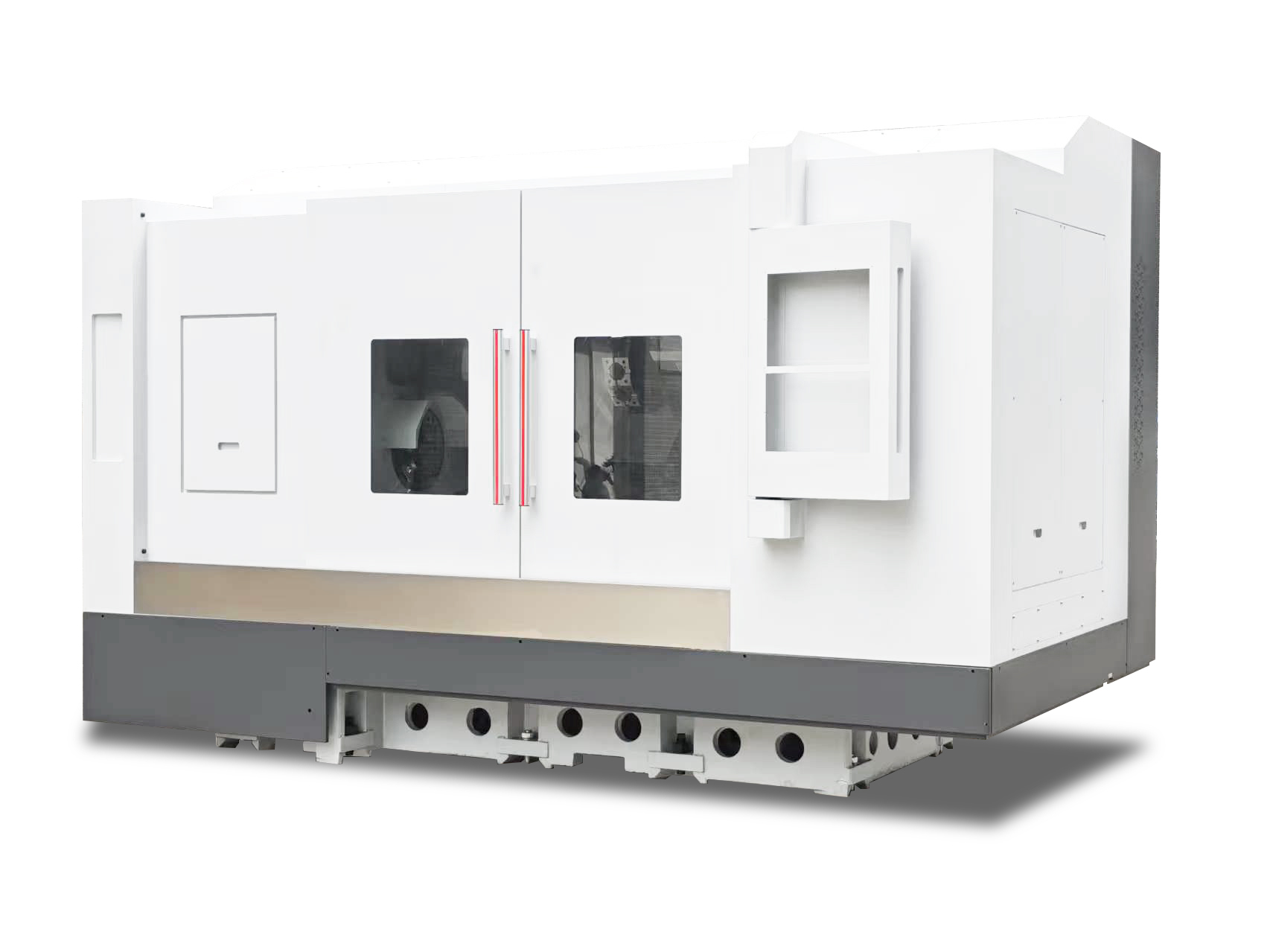

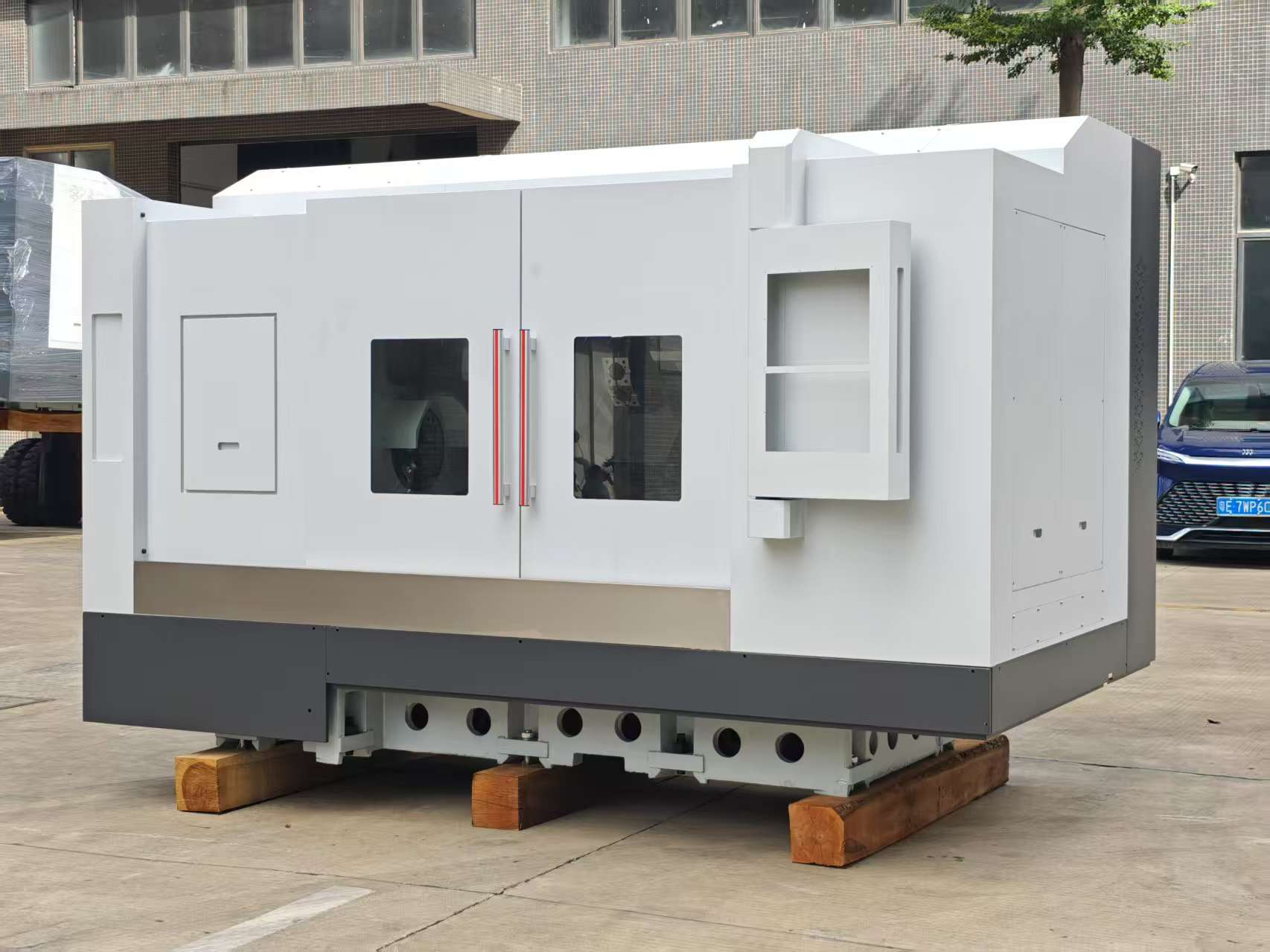

DT75-1000CY |
||
|
Capacity |
Swinging Over Cross Bed |
720mm |
|
|
Max.Distance from Chuck to Turret |
1090mm |
||
|
Min.Distance from Chuck to Turret |
-30mm |
||
|
Max.Distance from Chuck to Tailstock Center |
1130mm |
||
|
Max.Distance from Turret Center to Spindle Center |
495mm |
||
|
Max. Turning Diameter |
740mm |
||
|
Swinging Over Cross Carriage |
430mm |
||
|
Table Center Height |
125mm |
||
|
Feeding Travel |
X-Axis Travel Length |
370mm（-135mm ﹢235mm) |
|
|
Y-Axis Travel Length |
﹣75mm to﹢75mm |
||
|
Z-Axis Travel Length |
1120mm |
||
|
· Spindle |
Spindle Noise |
A2-8 |
|
|
Spindle Through Hole |
⌀86mm |
||
|
Spindle Speed (RPM) |
0-3000r/min |
||
|
Spindle Center Height (Above Datum) |
1165mm |
||
|
Servo Rotating Tailstock |
Fixed Center Model |
Morse taper No. 5 |
|
|
Quill Diameter |
φ150mm |
||
|
Linear Rail Tailstock Travel (Without Steady Rest ) |
1080mm |
||
|
Feeding Speed |
X-Axis Rapid Traverse Speed |
≤ 24m/min |
|
|
Y-Axis Rapid Traverse Speed |
≤ 10m/min |
||
|
Z-Axis Rapid Traverse Speed |
≤ 24m/min |
||
|
Tailstock Rapid Traverse Speed |
≤ 10m/min |
||
|
Live Turret |
Positions |
BMT65-12 |
BMT55-12 |
|
Tool Shank Size |
25x25mm |
25x25mm |
|
|
Boring Bar Diameter |
⌀40mm |
⌀32-40mm |
|
|
Turret Center Height |
125mm |
125mm |
|
|
Turret Hexagon Size (Across Flats) |
400mm |
450mm |
|
|
From Axial Live Tool Holder to Spindle Center (Tool Extension with 72mm Length） |
130mm |
155mm |
|
|
Boring Holder |
Hole Diameter 32mm |
||
|
Hole Diameter 40mm |
|||
|
OD Turning Holder |
|
||
|
Facing Tool Holder |
|
||
|
Axial Live Tool Holder |
|
||
|
Radial Live Tool Holder |
|
||
