ITEMS |

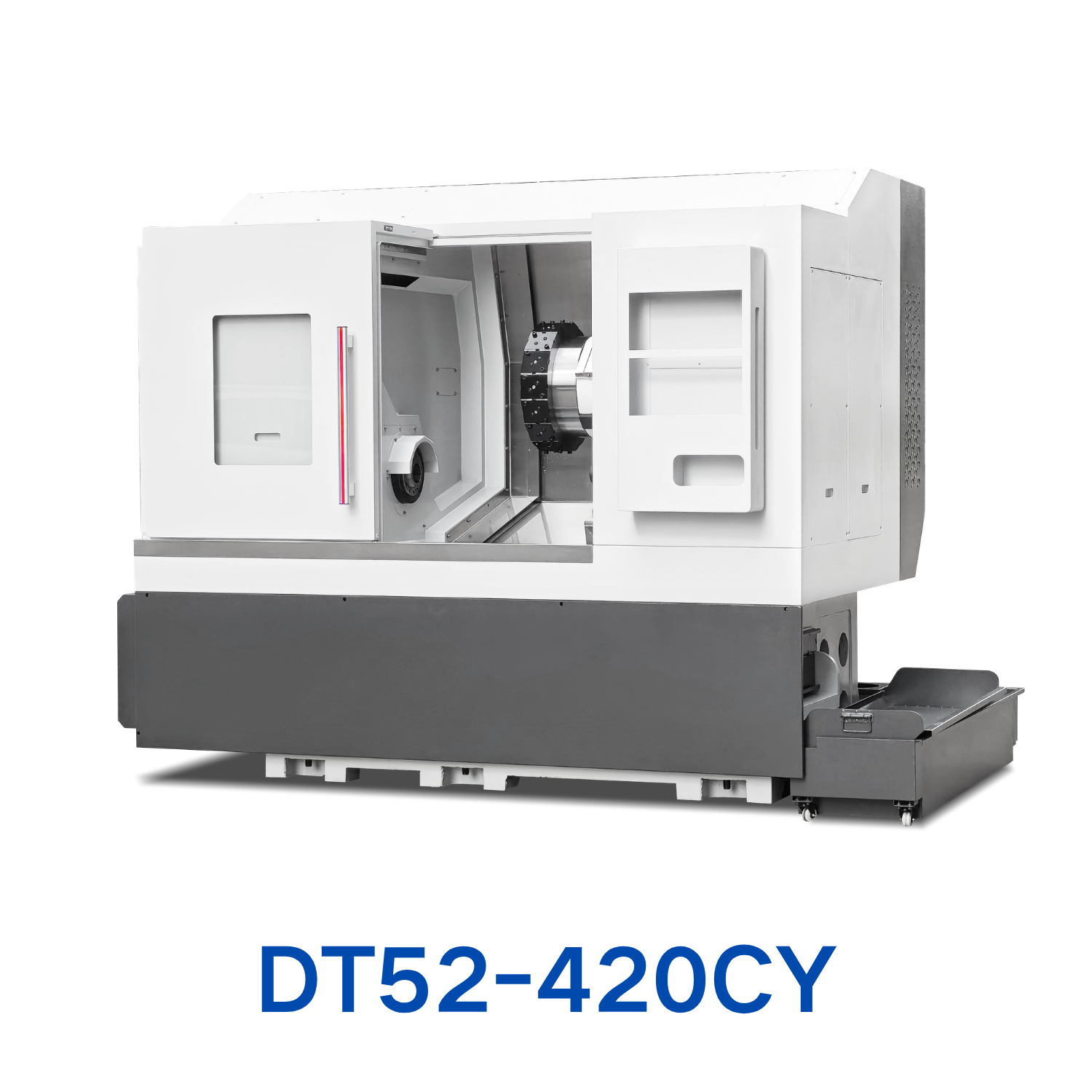

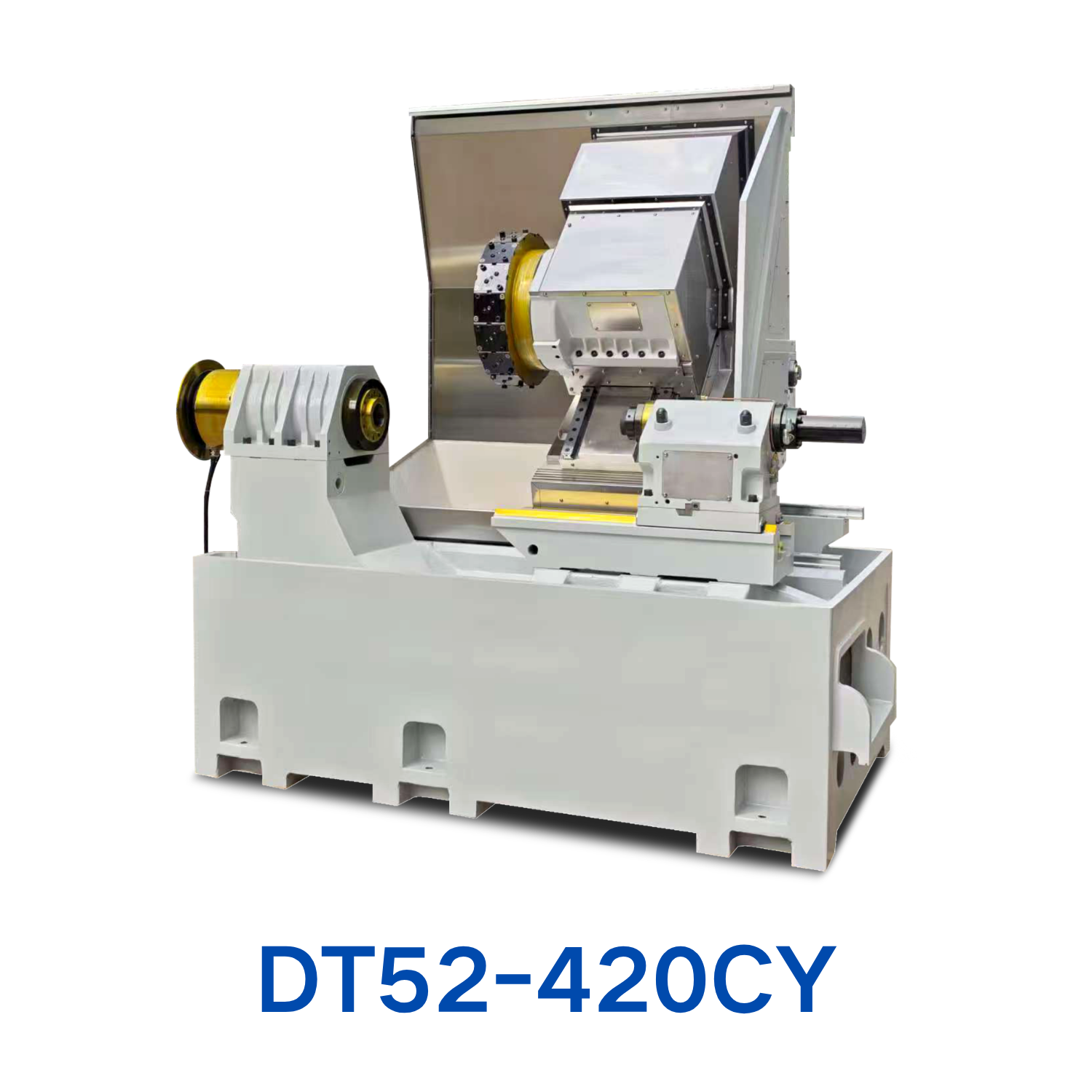

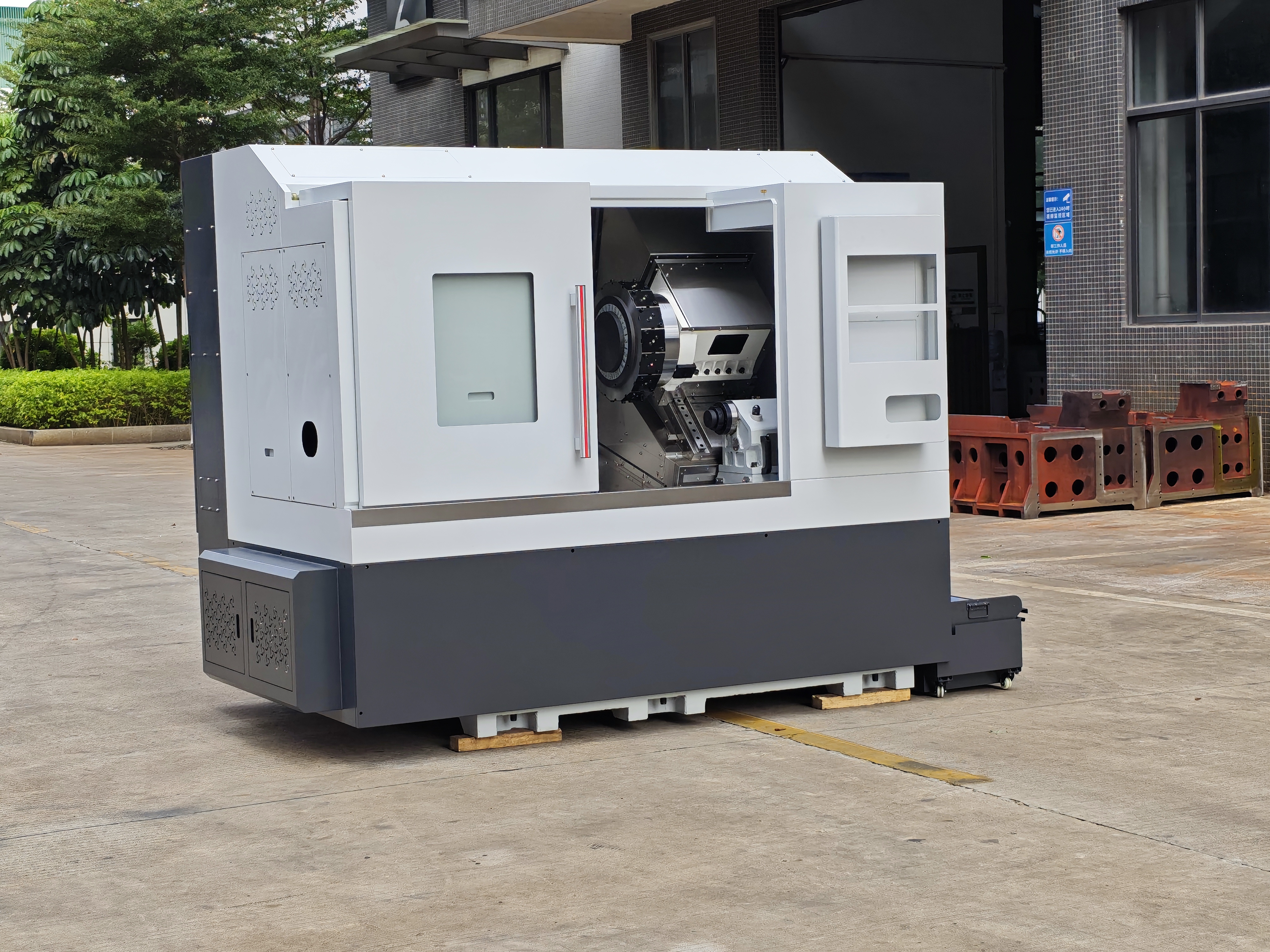

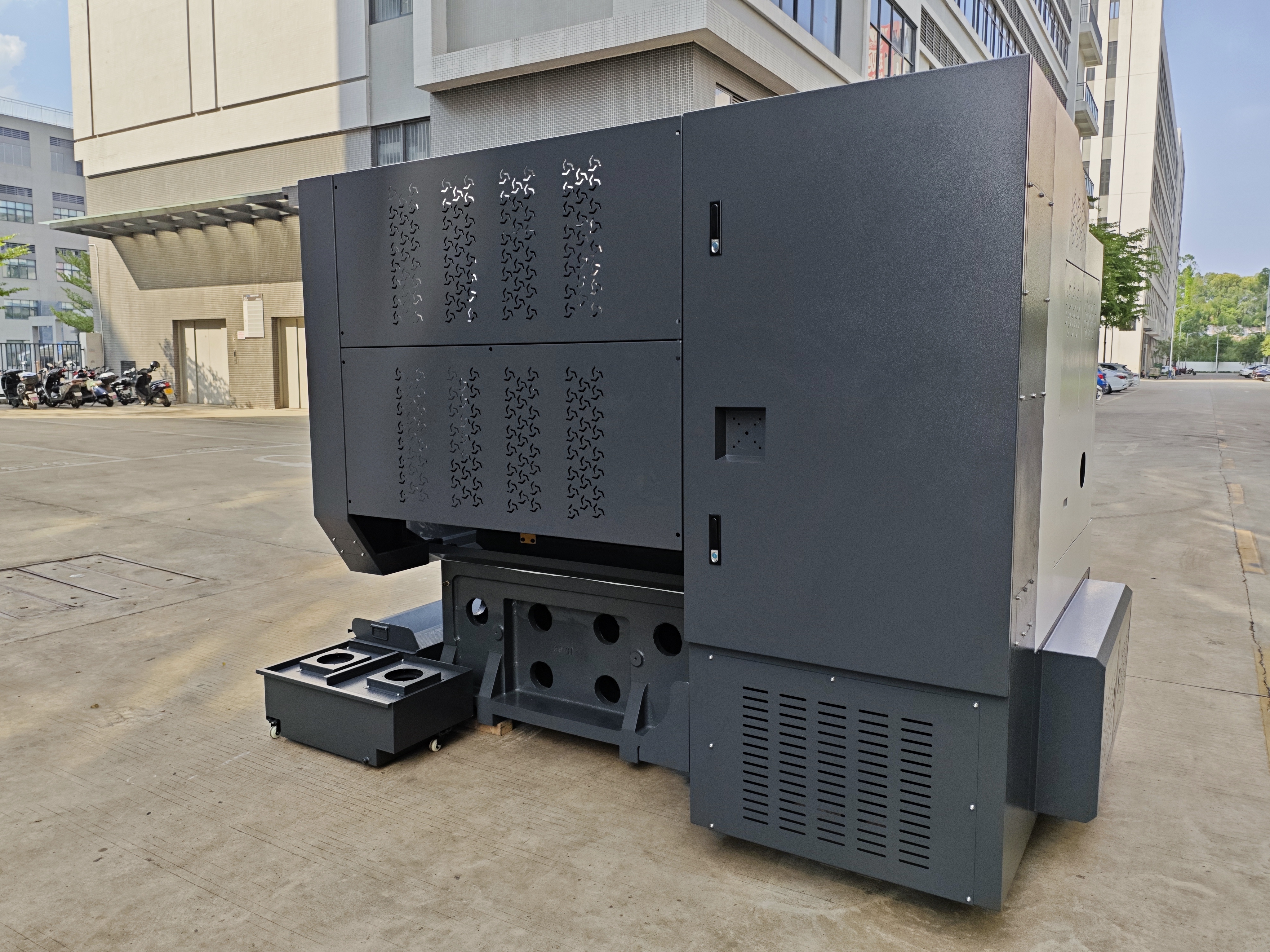

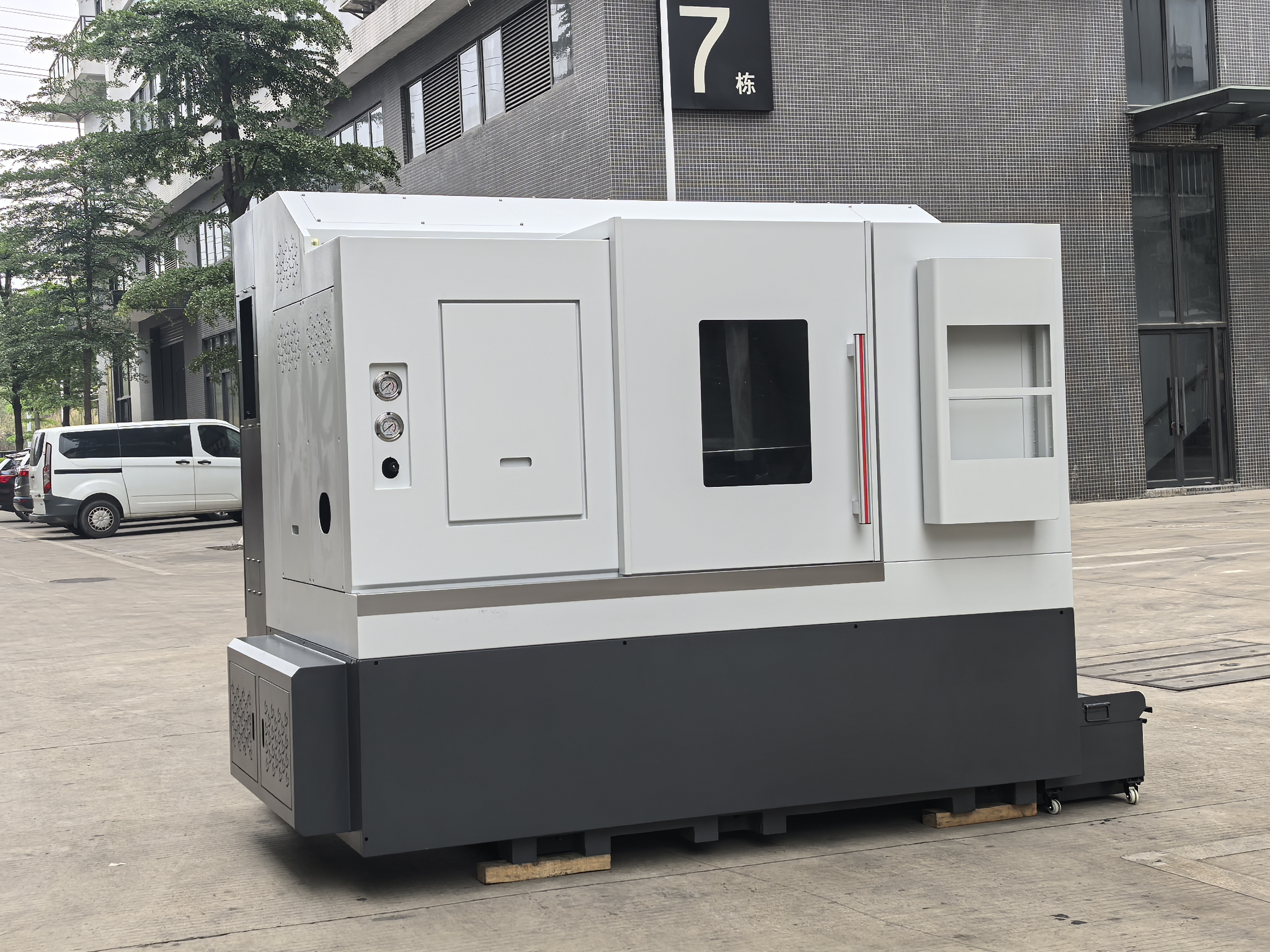

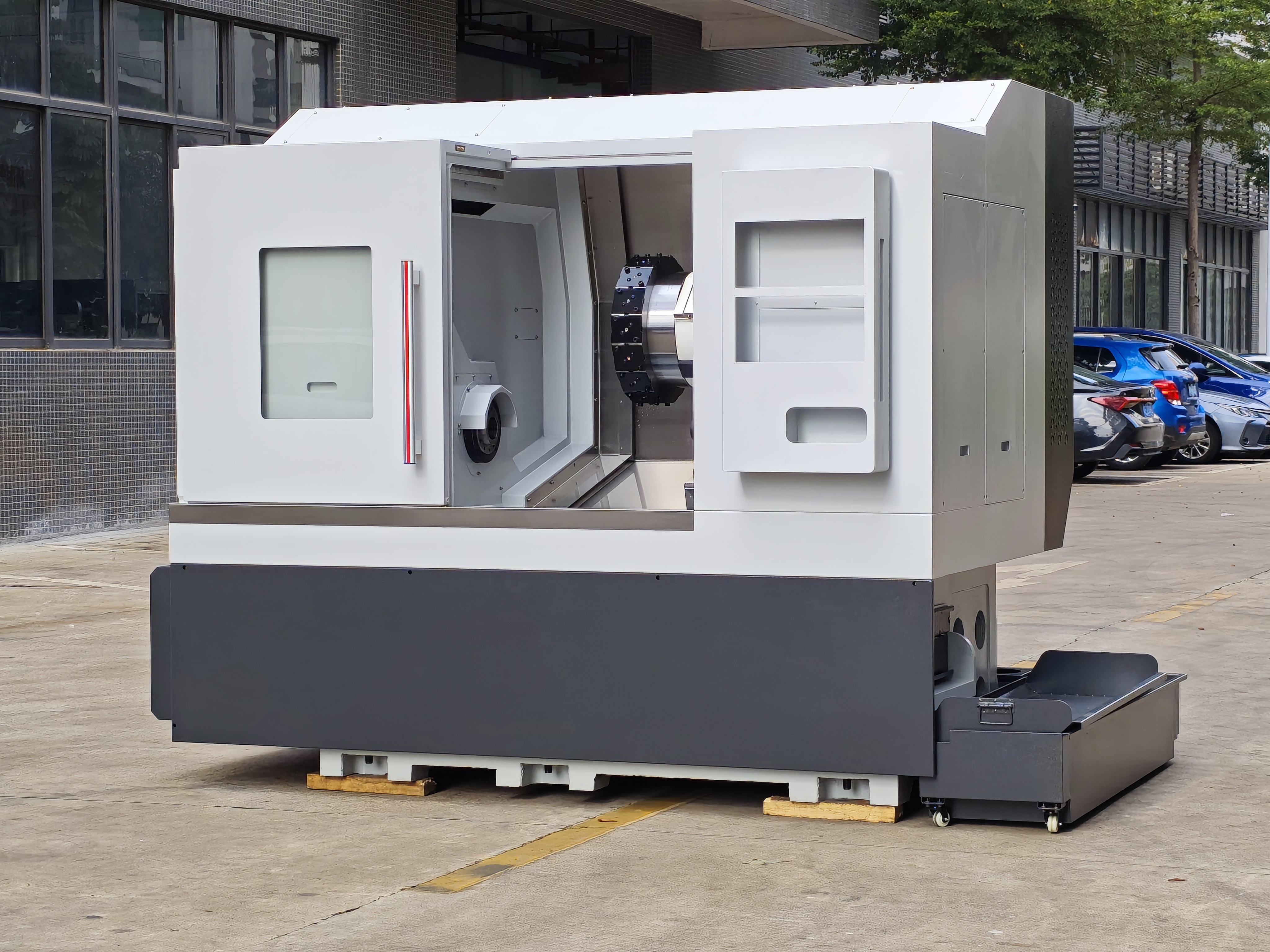

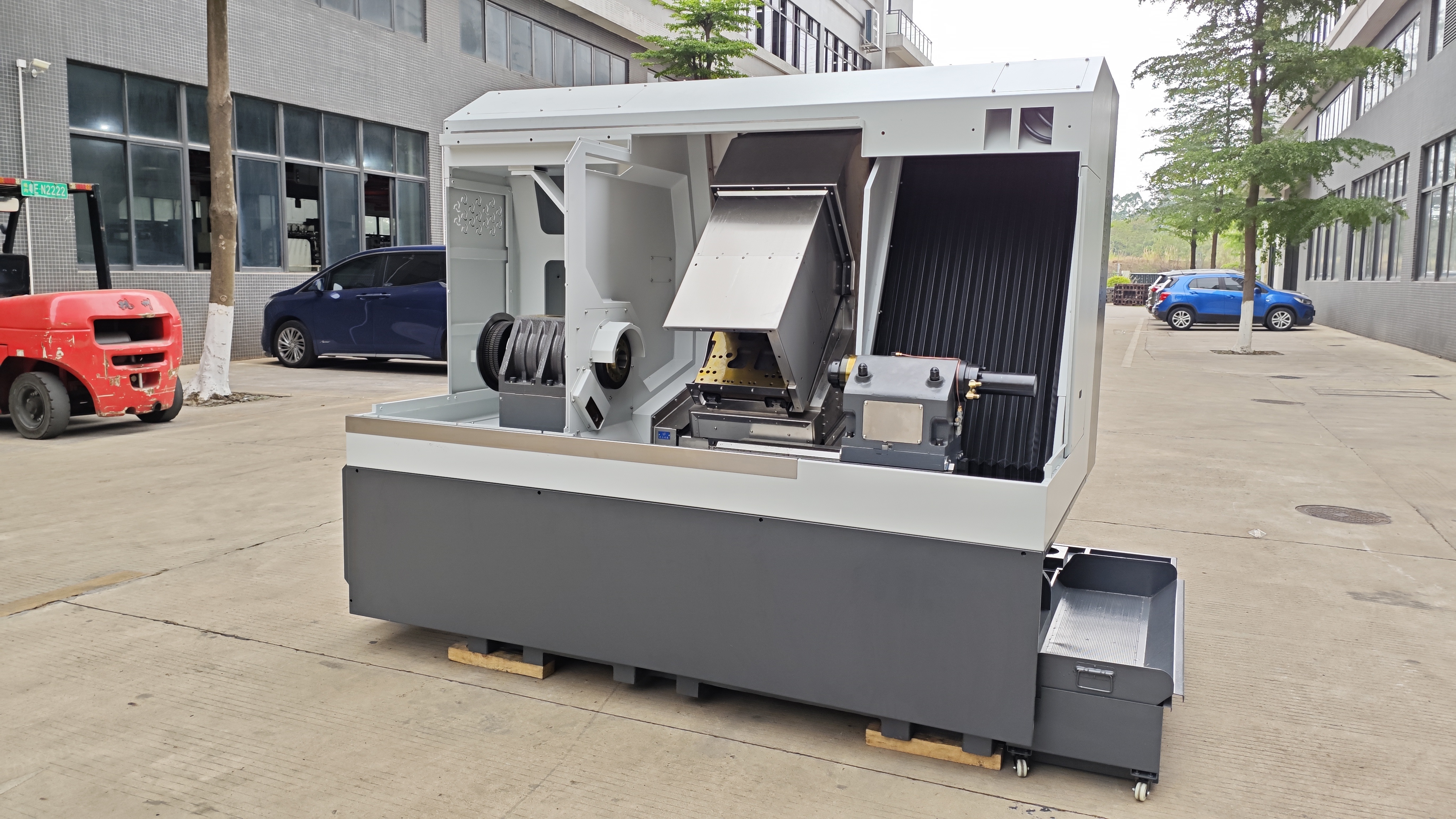

DT52-420CY |
|
|
Capacity |
Swinging Over Cross Bed |
650mm |
|
Max.Distance from Chuck to Turret |
485mm |
|
|
Min.Distance from Chuck to Turret |
-45mm |
|
|
Max.Distance from Turret Center to Spindle Center |
470mm |
|
|
Max.Distance from Chuck to Tailstock Center |
500mm |
|
|
Max. Turning Diameter |
720mm |
|
|
Table Center Height |
100mm |
|
|
Swinging Over Cross Carriage |
350mm |
|
|
Swing Diameter of Tailstock |
350mm |
|
|
Feeding Travel |
X-Axis Travel Length |
270mm(﹣90mm to﹢180mm) |
|
Y-Axis Travel Length |
﹢50 to﹣50mm |
|
|
Z-Axis Travel Length |
530mm |
|
|
Spindle |
Spindle Noise |
A2-6 |
|
Spindle Through Hole |
⌀66mm |
|
|
Spindle Speed (RPM) |
0-4500r/min |
|
|
Spindle Center Height (Above Datum) |
1065mm |
|
|
Hard Rail Tailstock |
Rotating Tailstock Model |
Morse taper No. 5 |
|
Tailstock Travel |
Horizontal sliding hard rail 420mm |
|
|
Center Travel |
120mm |
|
|
Quill Diameter |
95mm |
|
|
Feeding Speed |
X-Axis Rapid Traverse Speed |
≤ 24m/min |
|
Y-Axis Rapid Traverse Speed |
≤ 10m/min |
|
|
Z-Axis Rapid Traverse Speed |
≤ 24m/min |
|
|
Tailstock Rapid Traverse Speed |
≤ 10m/min |
|
|
Built-In Direct-Drive Live Turret |
Positions |
BMT55-16 |
|
Tool Shank Size |
25x25mm |
|
|
Boring Bar Diameter |
⌀32-40mm |
|
|
Turret Center Height |
100mm |
|
|
Turret Hexagon Size (Across Flats) |
450mm |
|
|
From Axial Live Tool Holder to Spindle Center (Tool Extension with 60mm Length） |
90mm |
|
|
Motor Rated DATA |
380V / 7.4KW / 14A / 20N.m / 3500RPM |
|
|
Motor MAX DATA |
29A / 40N.m / 8000RPM |
|
|
Boring Holder |
Hole Diameter 32mm |
|
|
Hole Diameter 40mm |
||
|
OD Turning Holder |
|
|
|
Facing Tool Holder |
|
|
|
Axial Live Tool Holder |
|
|
|
Radial Live Tool Holder |
|
|
