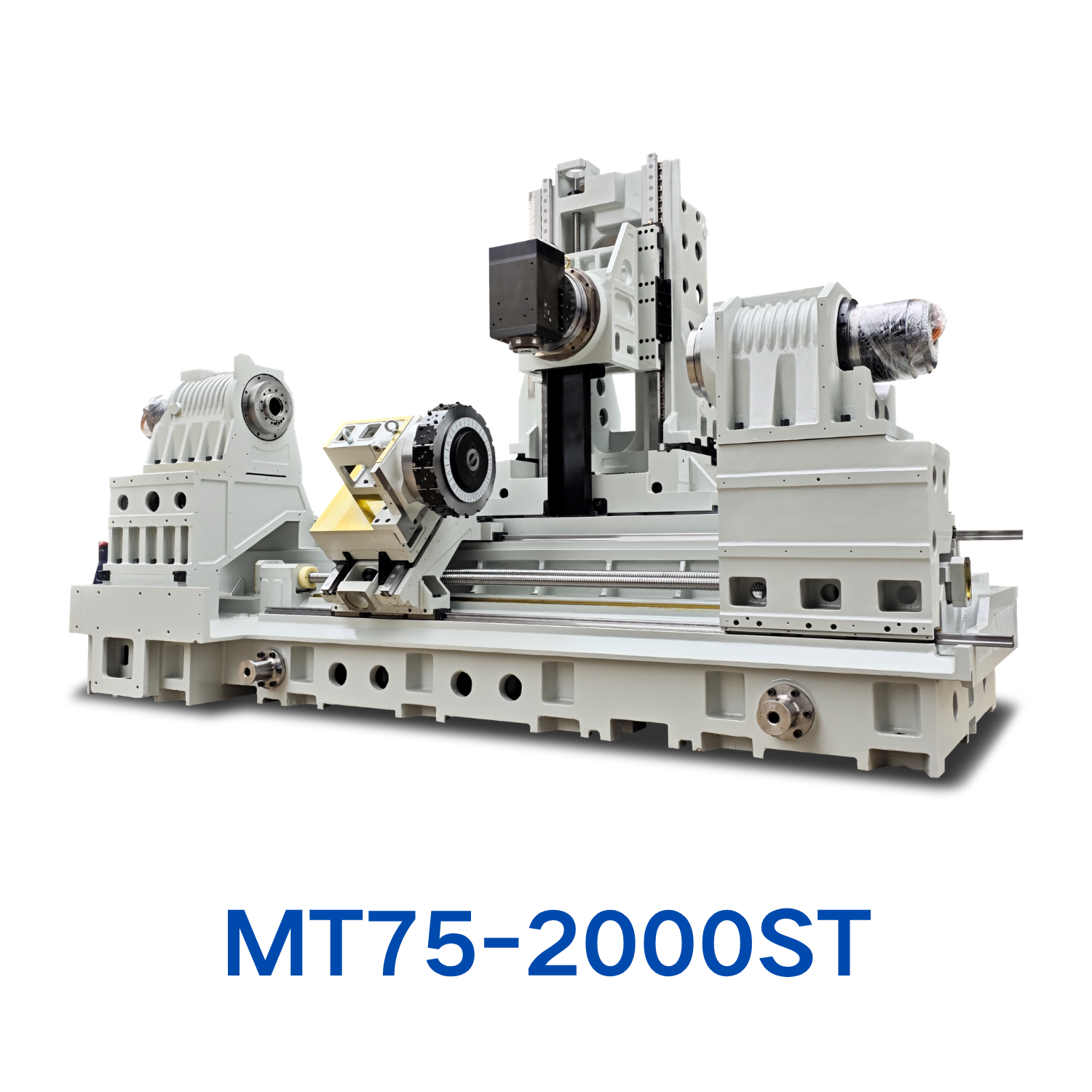

ITEM |
SPEC |
DATA |
|
Capacity |
Swinging Over Cross Bed |
630mm |
|
Max.Turning Diameter |
450mm |
|
|
Max.Turning Length |
2000mm |
|
|
Max.Load for Workpiece |
500mm |
|
|
· Travel Length |
X1-Axis Travel Length |
800mm |
|
X2-Axis Travel Length |
350mm
|
|
|
Y-Axis Travel Length
|
±175mm
|
|
|
Z1-Axis Travel Length
|
2050mm
|
|
|
Z2-Axis Travel Length (Turret)
|
1550mm
|
|
|
Z3-Axis Travel Length (Sub-spindle)
|
1550mm
|
|
|
· Feeding Axis
|
X1-Axis Ball Screw
|
5010-C3
|
|
Recommended X1-Axis Motor Torque
|
35N.m
|
|
|
·X2-Axis Ball Screw
|
4010-C3
|
|
|
Recommended X2-Axis Motor Torque
|
18N.m
|
|
|
Y-Axis Ball Screw
|
5012-C3
|
|
|
Recommended Y-Axis Motor Torque
|
35N.m
|
|
|
Z1-Axis Ball Screw
|
5010-C3
|
|
|
Recommended Z1-Axis Motor Torque
|
35N.m
|
|
|
Z2/Z3-Axis Ball Screw
|
5010-C3
|
|
|
Recommended Z2/Z3-Axis Motor Torque
|
35N.m
|
|
|
Z4-Axis Ball Screw
|
5010-C3
|
|
|
Recommended Z4-Axis Motor Torque
|
35N.m
|
|
|
Electric
Spindle C1
|
Chuck Size
|
10″
|
|
Spindle Nose Type
|
ISO A2-8
|
|
|
Max.Spindle Speed
|
3500 RPM
|
|
|
Spindle Through Hole
|
88mm
|
|
|
Max.Bar Capacity
|
75mm
|
|
|
Spindle Taper
|
1 : 20
|
|
|
Spindle Power
|
22/27 KW
|
|
|
Max. Current
|
145 A
|
|
|
Spindle Torque
|
600/7200 N.m
|
|
|
Electric
Sub-Spindle C1
|
Chuck Size
|
10″
|
|
Spindle Nose Type
|
ISO A2-8
|
|
|
Max.Spindle Speed
|
3500 RPM
|
|
|
Spindle Through Hole
|
88mm
|
|
|
Max.Bar Capacity
|
75mm
|
|
|
Spindle Taper
|
1 : 20
|
|
|
Spindle Power
|
22/27 KW
|
|
|
Max. Current
|
145 A
|
|
|
Spindle Torque
|
600/7200 N.m
|
|
|
B Axis -
Swivel Axis
(DD）
|
Continuous Torque
|
580 N.m
|
|
Continuous Power
|
6071 W
|
|
|
Max.Torque
|
1160 N.m
|
|
|
Rated /Max. Current
|
14/38.1 A
|
|
|
Max.Speed
|
100 RPM
|
|
|
Locking Torque
|
7200 N.m
|
|
|
Encoder Part-number
|
ECA4412
|
|
|
Swing Range
|
±120°
|
|
ITEM
|
SPEC
|
DATA
|
|
B Axis -
Milling Electric
Spindle
|
Milling Spindle Tool Interface
|
HSK-T63
|
|
Through-Spindle Coolant Pressure
|
80bar
|
|
|
External Coolant Pressure
|
25bar
|
|
|
S1/S6 Torque
|
89.4/109 N.m
|
|
|
S1/S6 Power
|
36.6/44.6 KW
|
|
|
Max. Current
|
82A
|
|
|
Max. Speed
|
12000 RPM
|
|
|
Tool Magazine
|
Magazine Capacity
|
60+ (It can be expanded）
|
|
Tool Holder Interface
|
HSK-T63
|
|
|
Max. Tool Diameter × Length (with adjacent tool)
|
95mm
|
|
|
Max. Tool Diameter × Length (no adjacent tool)
|
550mm
|
|
|
Tool Change Time
|
2 Seconds
|
|
|
Max. Tool Weight
|
12 KG
|
|
|
Live Turret
|
Rated Power
|
7.4 KW
|
|
Rated Current
|
14 A
|
|
|
Rated Torque
|
20 N.m
|
|
|
Rated Speed
|
3500 RPM
|
|
|
Max.Speed
|
8000 RPM
|
|
|
Center Height
|
100mm
|
|
|
Boring Holder Diameter
|
40mm
|
|
|
Number of Stations
|
16T
|
|
|
Tool Holder Type
|
BMT55
|
|
|
Tool Shank Size
|
□25x25
|
|
|
Turret Indexing Motor
|
Rated Power
|
2.4KW
|
|
Motor Shaft Diameter
|
24mm
|
|
|
Motor Shaft Keyway
|
8mm
|
|
|
Motor Dimension
|
130mm*130mm
|
|
|
Motor Spigot Diameter
|
110mm
|
|
|
Motor Shaft Length
|
58mm
|
|
|
Key Accuracy Specifications
|
Positioning Accuracy for Axis (with linear encoder)
|
X1X2X3 : 0.006mm
|
|
Y : 0.006mm
|
||
|
Z1 : 0.008mm
|
||
|
Z2/Z3 : 0.008mm
|
||
|
Repeating Positioning Accuracy for Axis
|
X1X2 : 0.004mm
|
|
|
Y : 0.004mm
|
||
|
Z1 : 0.004mm
|
||
|
Z2 Z3 : 0.004mm
|
||
|
Positioning Accuracy for Spindle（arcsecond）
|
C1/C2/B：±15 / ±15 / ±10 ″
|
|
|
Repeating Positioning Accuracy（arcsecond）
|
C1/C2/B：±5 / ±5 / ±5 ″
|
|
|
Main Spindle Runout:
Face / Radial / Near Spindle Nose
|
0.002/0.002/0.003 mm
|
|
|
Sub-Spindle Runout:
Face / Radial / Near Spindle Nose
|
002/0.002/0.003 mm
|
